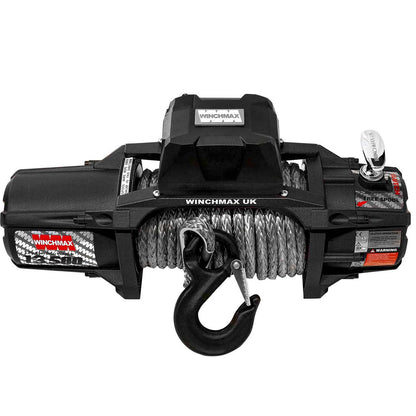

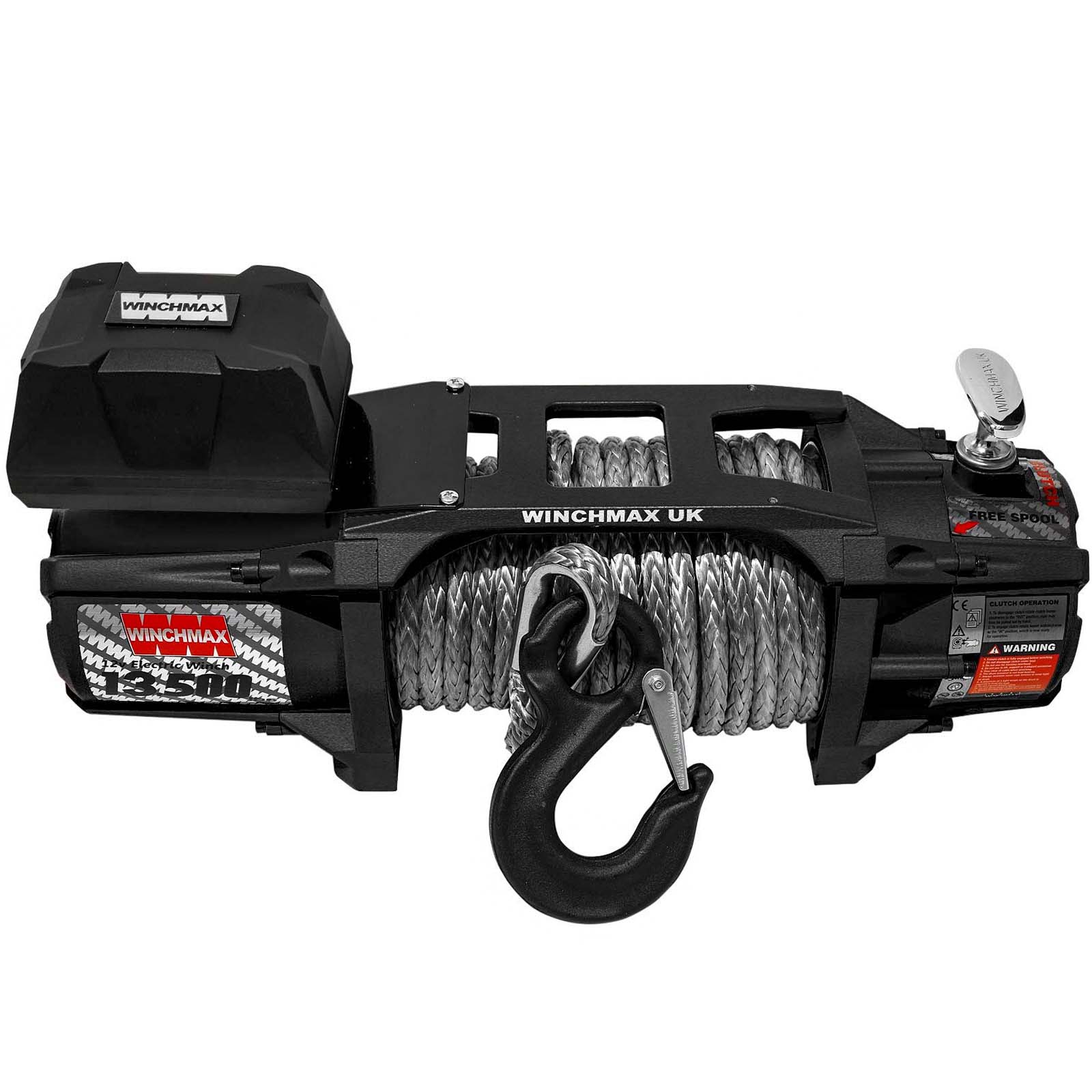

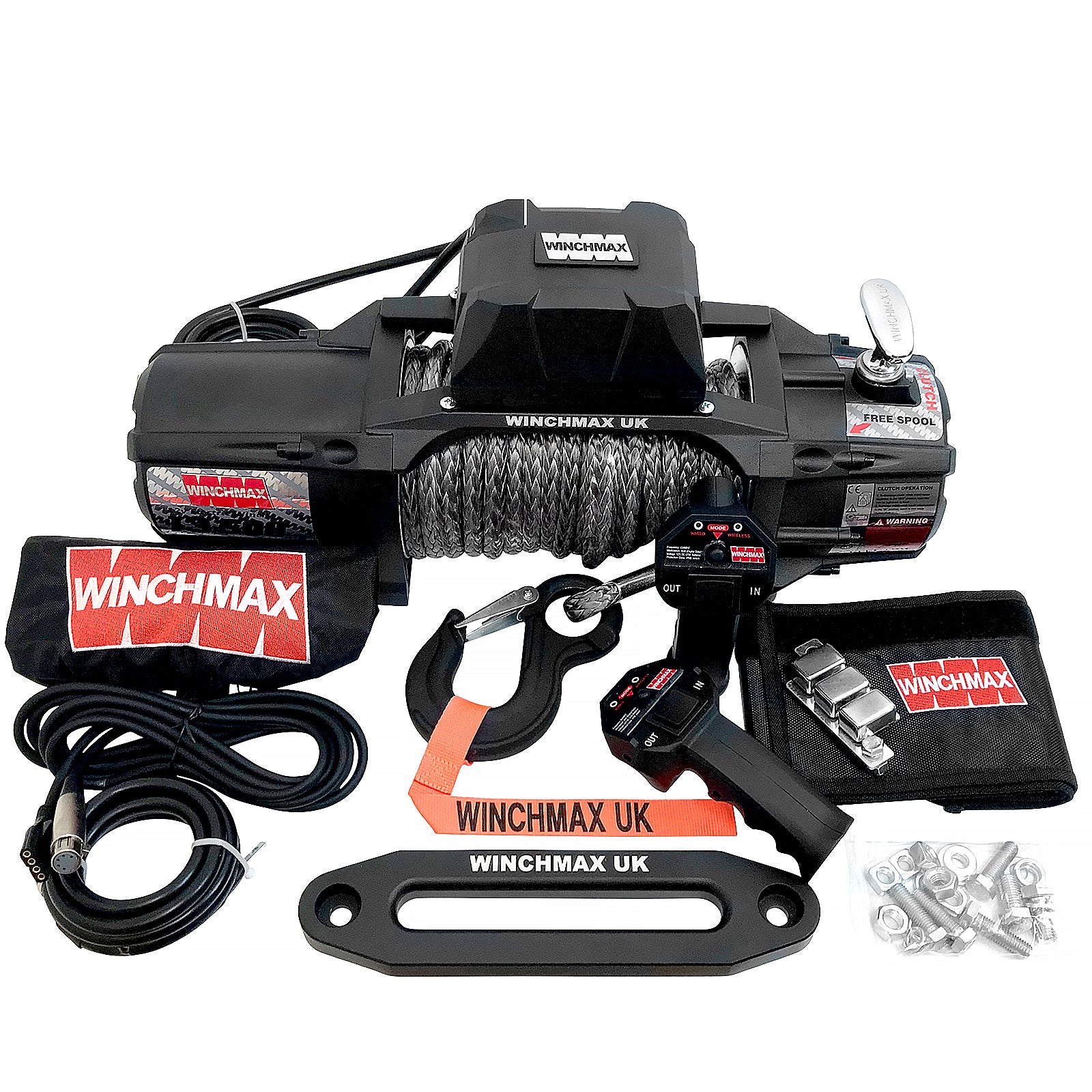

13,500lb (6,123kg) ‘SL Series’ Military Grade 12v Electric Winch, Dyneema rope, Twin Wireless Remote Control

WMSL1350012VMILSPECSYN

Availability in stock

£549.95 (Without VAT: £458.29)
€606.59 (EUR) 4,515.18 kr. (DKK) 2,802.58 zł (PLN) 6,290.98 kr (SEK) $711.35 (USD) $944.95 (CAD) $1,007.13 (AUD) ¥7,422,281 (JPY) $5,513.03 (HKD) $1,070.46 (NZD) $15,150.22 (MXN) 6,653.91 kr (NOK) R11,657.94 (ZAR) CHF648.63 (CHF)

Your delivery cost

(based on country United States) £76.46
Conversions

13,500lb (6,123kg) ‘SL Series’ Military Grade 12v Electric Winch, Dyneema rope, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4’s up to 3.5T



Features

  • 13,500lb (6,123kg) straight-line pull ‘SL series’ 12v electric winch.
  • Military-grade with improved anti-corrosion measures.

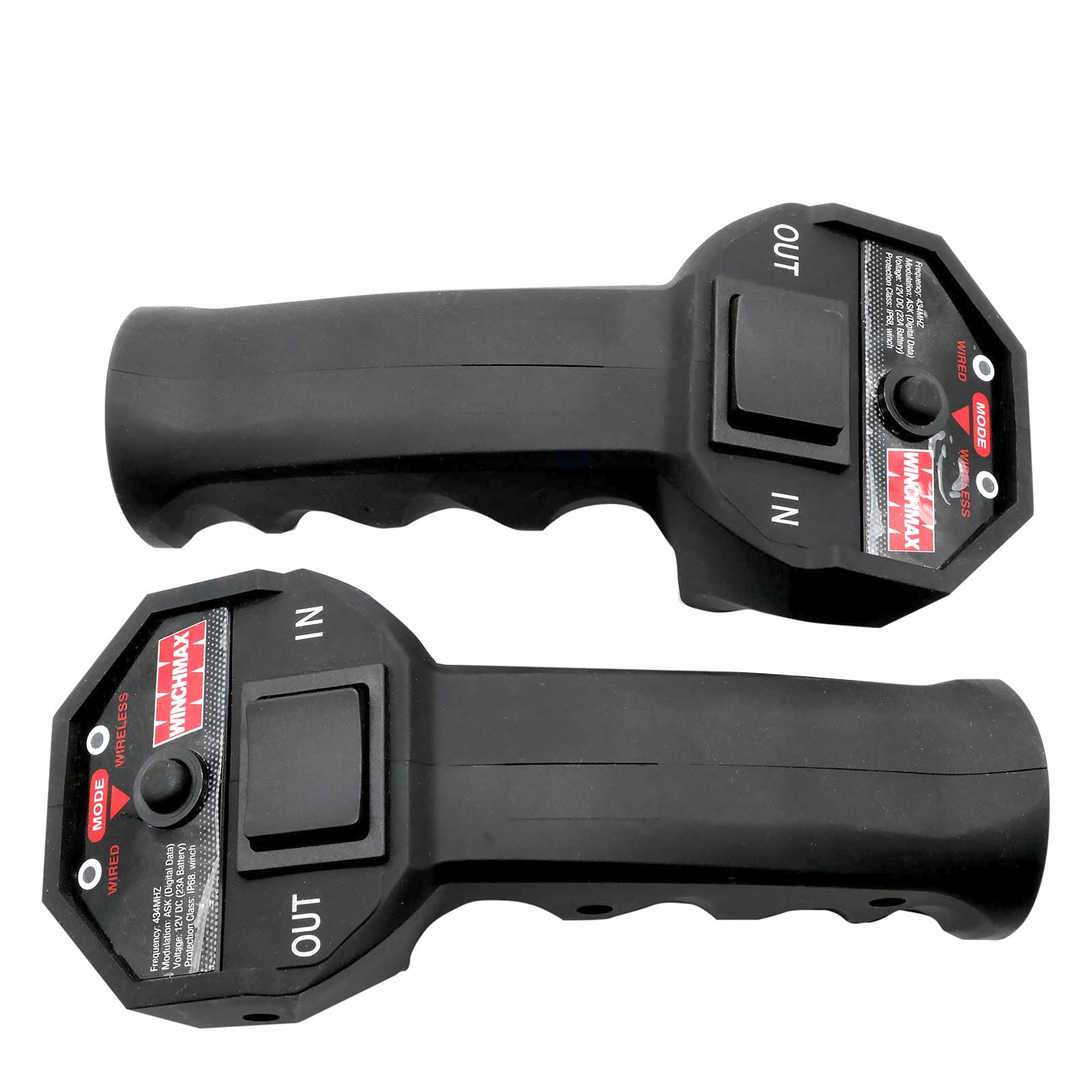

  • Latest technology long-range combination wireless remote controls, twin handsets.
  • Super powerful 12v 6.8hp/5.1kw series wound electric motor.
  • Massive ultra-tough three-stage gearbox with hardened steel gears.
  • Motor and gearbox casing machined from billet steel for maximum impact protection.
  • 28m of 11mm Dyneema SK75 multi-strand synthetic rope.
  • New ‘through-drum’ rope connection with grub screw clamp for ultra-secure rope attachment to drum.
  • Competition hook with safety catch and hand saver, black.
  • WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.

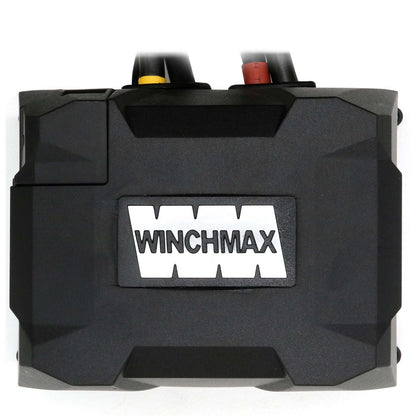

  • Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
  • Power in/out big grip wander lead with extra-long (4.5m) cord.
  • Upgraded water seals.
  • Stainless steel fixings.
  • Galvanised steel drum.
  • Sliding ring gear freewheel clutch.
  • High tensile fixing bolt kit.

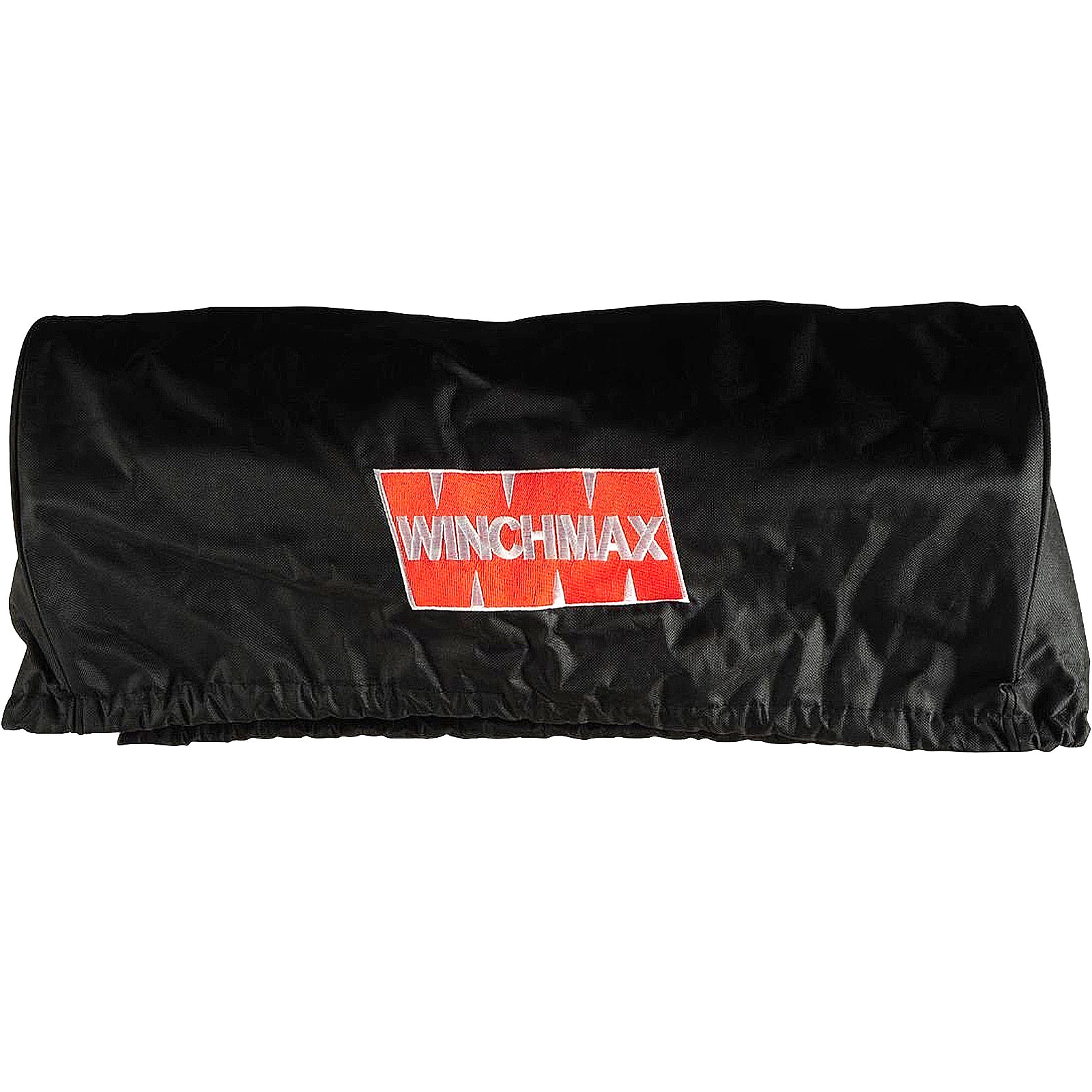

  • Strong WINCHMAX branded cover to protect from water and road grime
  • Heavy-duty & built to last - gross weight 30kg.
  • CE certified & built to ISO9001 quality management system requirements.



Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull 13,500lb (6,123kg)
Motor 12v 6.8hp/5.1kw series wound
Control Big grip remote switch, 4.5m lead.
Gear Train 3 stage planetary
Gear Reduction Ratio 265:1
Clutch Sliding ring gear
Braking Action Automatic in the drum
Drum size Diameter 64mm (2.5") length 224mm (8.82”)
Drum Finish Galvanised
Cable 28m of 11mm Dyneema SK75 synthetic rope
Fairlead One-piece billet aluminium hawse fairlead
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Winch Finish Matt black (low light paint)
Weight (GW) 30kg (66lb)

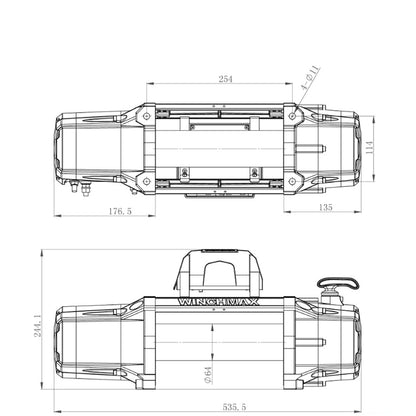

Overall Dimensions (LxWxH) 536 x 160 x 218mm (21.3" x 6.3" x 8.6")
Mounting Bolt Pattern 10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm)
Motor Current 65-500A
No Load Line Speed 7.5m/min (24.6 ft/min)
Waterproof IP67 Rating



Layer Rated

 Line pull (Lb)

 Line Pull (Kg)

 Total Rope On Drum (ft/m)

 1

 13500

 6123

 20.4/6.22

 2

 9530

 4332

 41/12.0

 3

 7929

 3604

 71/21.0

 4

 6770

 3077

 85/24.0



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 24.6ft (7.5m)

 70A

 3000 (1363)

 11.48ft (3.5m)

 138A

 6000 (2727)

 8.86ft (2.7m)

 218A

 9000 (4090)

 7.72ft (2.2m)

 260A

 13500 (6123)

 5.58ft (1.7m)

 350A
