13,500lb (6,123kg) ‘SL Series’ Military Grade 12v electric Winch, Steel Rope, Twin Wireless remote control

WMSL1350012VMILSPEC

Availability in stock

£469.95 (Without VAT: £391.62)
€521.47 (EUR) 3,885.80 kr. (DKK) 2,330.30 zł (PLN) 5,460.59 kr (SEK) $585.30 (USD) $794.36 (CAD) $843.48 (AUD) ¥6,293,117 (JPY) $4,536.12 (HKD) $897.14 (NZD) $13,195.78 (MXN) 5,568.01 kr (NOK) R9,999.79 (ZAR) CHF553.96 (CHF)

Your delivery cost

(based on country United States) £95.07
Conversions

13,500lb (6,123kg) ‘SL Series’ Military Grade 12v electric Winch, Steel Rope, Twin Wireless remote control

Ideal for recovery trucks and 4x4’s up to 3.5T



Features

  • 13,500lb (6,123kg) straight-line pull ‘SL series’ 12v electric winch.
  • Military-grade with improved anti-corrosion measures.
  • Latest technology long-range combination wireless remote controls, twin handsets.
  • Super powerful 12v 6.8hp/5.1kw series wound electric motor.
  • Massive ultra-tough three-stage gearbox with hardened steel gears.
  • Motor and gearbox casing machined from billet steel for maximum impact protection.
  • 26m x 9.5mm galvanised steel wire rope.
  • Through-drum rope attachment with grub screw clamp for maximum security.

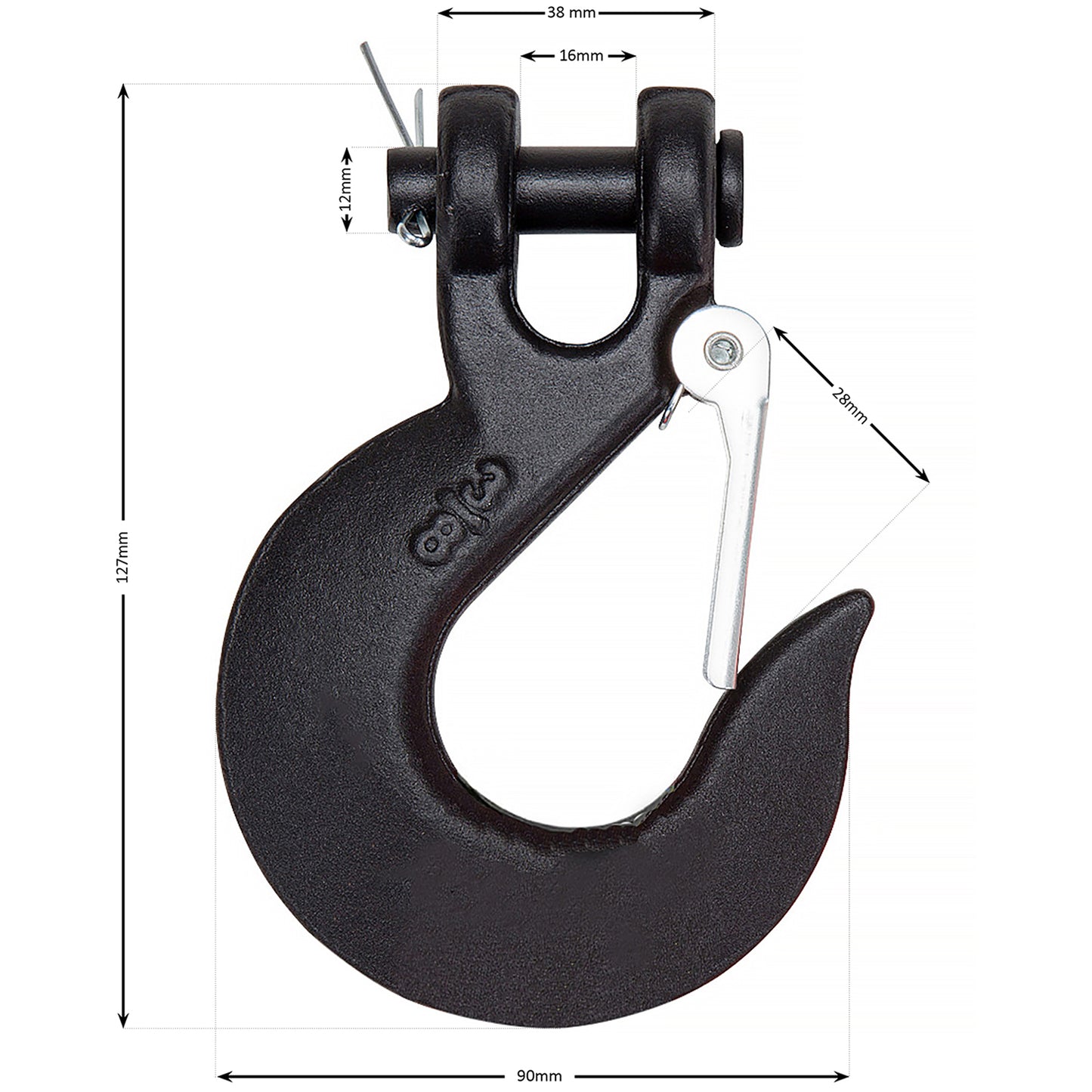

  • Clevis hook ⅜” G70 grade forged. Safety catch and hand saver, black.
  • Tough four roller fairlead with stainless steel rollers.
  • Upgraded water seals.
  • Stainless steel fixings.
  • Galvanised steel drum,
  • Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP68 waterproof.
  • Sliding ring gear freewheel clutch.
  • High tensile fixing bolt kit.
  • Strong WINCHMAX branded cover to protect from water and road grime.
  • Heavy-duty & built to last - gross weight 40kg.
  • CE certified & built to ISO9001 quality management system requirements.



Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single line rated pull 13,500lb (6,123kg)
Motor 12v 6.6hp Series Wound
Remote Control Wireless Remote Included x 2
Control Big Grip Remote Switch, 12' (3.7m) lead
Gear train 3 Stage Planetary
Gear reduction ratio 265:1
Clutch Sliding Ring Gear
Braking Action Automatic In The Drum
Drum size Diameter 63.5mm (2.5") Length 224mm(8.82”)
Drum Finish Galvanised
Cable 24m (79ft) of 9.4mm (3/8") diameter steel wire rope
Fairlead 4-Way Stainless Steel Roller Fairlead
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge, 1.83m (72”) 25mmsq - 5.6mm Diameter
Finish Textured Black (Low Light)
Weight GW 40kg (88lb)
Overall Dimensions(LxWxH) 536 x 160 x 218mm (21.3" x 6.3" x 8.6")
Mounting Bolt Pattern 10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm)
Motor Current 65-570A
No Load Line Speed 7.5m/min (24.6 ft/min)
Waterproof IP68 Rating



Layer Rated

 Line pull (Lb)

 Line Pull (Kg)

 Total Rope On Drum (ft/m)

 1

 13500

 6123

 20.4/6.22

 2

 9530

 4332

 41/12.0

 3

 7929

 3604

 71/21.0

 4

 6770

 3077

 85/24.0



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 24.6ft (7.5m)

 70A

 3000 (1363)

 11.48ft (3.5m)

 138A

 6000 (2727)

 8.86ft (2.7m)

 218A

 9000 (4090)

 7.72ft (2.2m)

 260A

 13500 (6123)

 5.58ft (1.7m)

 350A
