Product standard wm20000hyd nc dsc 0070 white 01

20,000lb (9072kg) Original Orange Hydraulic Winch, Steel Rope

WM20000HYD-NC

Availability in stock

£779.95 (Without VAT: £649.96)
€915.34 (EUR) 6,807.64 kr. (DKK) 4,257.05 zł (PLN) 9,371.50 kr (SEK) $1,073.23 (USD) $1,353.05 (CAD) $1,410.72 (AUD) ¥11,891,151 (JPY) $8,343.58 (HKD) $1,534.93 (NZD) $22,014.42 (MXN) 9,149.26 kr (NOK) R15,879.64 (ZAR) CHF1,013.28 (CHF)

Your delivery cost

(based on country United States) £159.25
Conversions

20000lb (9072kg) Original Orange Hydraulic Winch, Steel Rope



Features

  • 20,000lb (9,072kg) straight-line pull hydraulic winch (12v controls)
  • Ultra-tough three-stage gearbox with hardened steel gears.
  • Casing machined from billet steel for maximum impact protection.
  • 25m of 14mm galvanized steel wire rope.
  • Through-drum rope attachment with grub screw clamp for maximum security.
  • ½" grade 70 forged clevis hook with safety catch and hand saver zinc plated for corrosion resistance.
  • Tough four roller fairlead with zinc plated rollers.
  • Sliding ring gear free-wheel clutch.
  • High tensile fixing bolt kit.
  • Heavy duty & built to last - gross weight 62kg.
  • CE certified & built to ISO9001 quality management system requirements.



Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

 Single Line Rated Pull  20,000lb (9,072kg)
 Motor  Hydraulic
 Control  NOT SUPPLIED
 Gear Train  3 Stage Planetary
 Gear Reduction Ratio  32:1
 Clutch  Sliding Ring Gear
 Braking Action  Automatic
 Drum Size  Diameter 88mm length 222mm
 Drum Finish  Black, painted.
 Cable  25m of 14mm galvanized steel wire rope
 Fairlead  4-Way roller fairlead
 Flow  50-60 L/min
 Pressure  10.8Mpa (108 Bar)
 Winch Finish  Original Orange powder coated
 Weight (GW)  62kg (136lb)

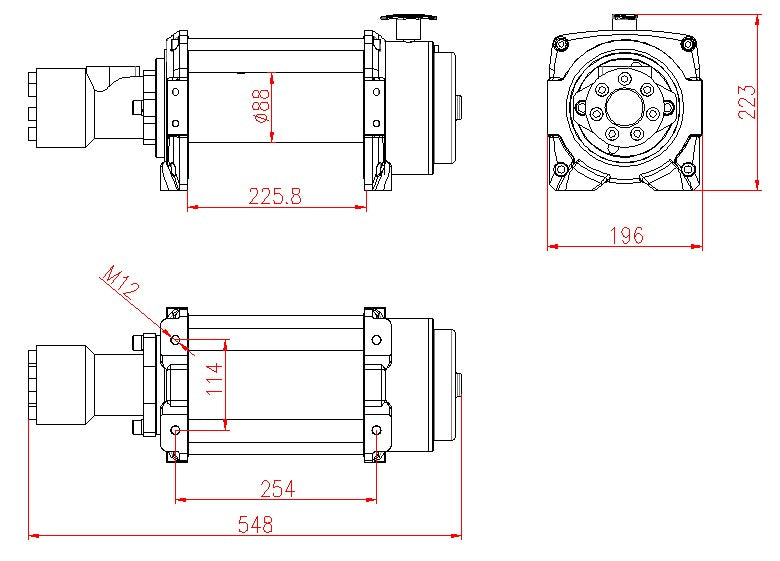

 Overall Dimensions (LxWxH)  548 x 196 x 249mm
 Mounting Bolt Pattern  10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm)
 No Load Line Speed  6.5m/min (21.3 ft/min)



 Layer Rated

 Line pull (lb)

 Pull per layer (kg)

 Line speed (m/min)

 1

 20000

 9072

 4.24

 2

 17860

 8118

 4.75

 3

 16130

 7332

 5.26

 4

 14710

 6686

 5.77



  • Wm20000hyd nc dsc 0070 white 01
  • Wm20000hyd nc dsc 0071 white 02
  • Wm20000hyd nc dsc 0072 white 03

Hydraulic Winch Manual

Hydraulic_Winch_Manual.pdf
