Product standard wm2000024v mg 5905 white

20,000lb (9,072kg) Heavy Recovery Original Orange 24v Electric Winch, Twin Wireless Remote Control

WM2000024V

Availability in stock

£799.95 (Without VAT: £666.62)
€886.78 (EUR) 6,603.52 kr. (DKK) 4,098.89 zł (PLN) 9,191.51 kr (SEK) $1,037.36 (USD) $1,379.48 (CAD) $1,468.78 (AUD) ¥10,850,688 (JPY) $8,043.66 (HKD) $1,557.64 (NZD) $22,029.13 (MXN) 9,837.98 kr (NOK) R16,880.73 (ZAR) CHF948.68 (CHF)

Your delivery cost

(based on country United States) £175.16
Conversions

20,000lb (9,072kg) Heavy Recovery Original Orange 24v Electric Winch, Twin Wireless Remote Control
Integral roller fairlead, no mounting plate required.



Features

  • 20,000lb (9,072kg) straight-line pull ‘Z Series’ 24v electric winch.
  • Latest technology long-range wireless remote controls, twin handsets.
  • Super powerful 24v 7.0hp/5.2kw series wound electric motor.
  • Power in/out handheld control unit - with a large emergency stop button.
  • Massive ultra-tough four-stage gearbox with hardened steel gears.
  • Motor and gearbox casing machined from billet steel for maximum impact protection.
  • 25m of 14mm galvanised steel wire rope.
  • New ‘through-drum’ rope connection with grub screw clamp for ultra-secure rope attachment to drum.
  • ½" grade 70 forged clevis hook with safety catch and hand saver zinc plated for corrosion resistance.
  • Super heavy-duty four roller fairlead - attached to the winch (no mounting plate required).
  • Sliding ring gear freewheel clutch.
  • High tensile fixing bolt kit.

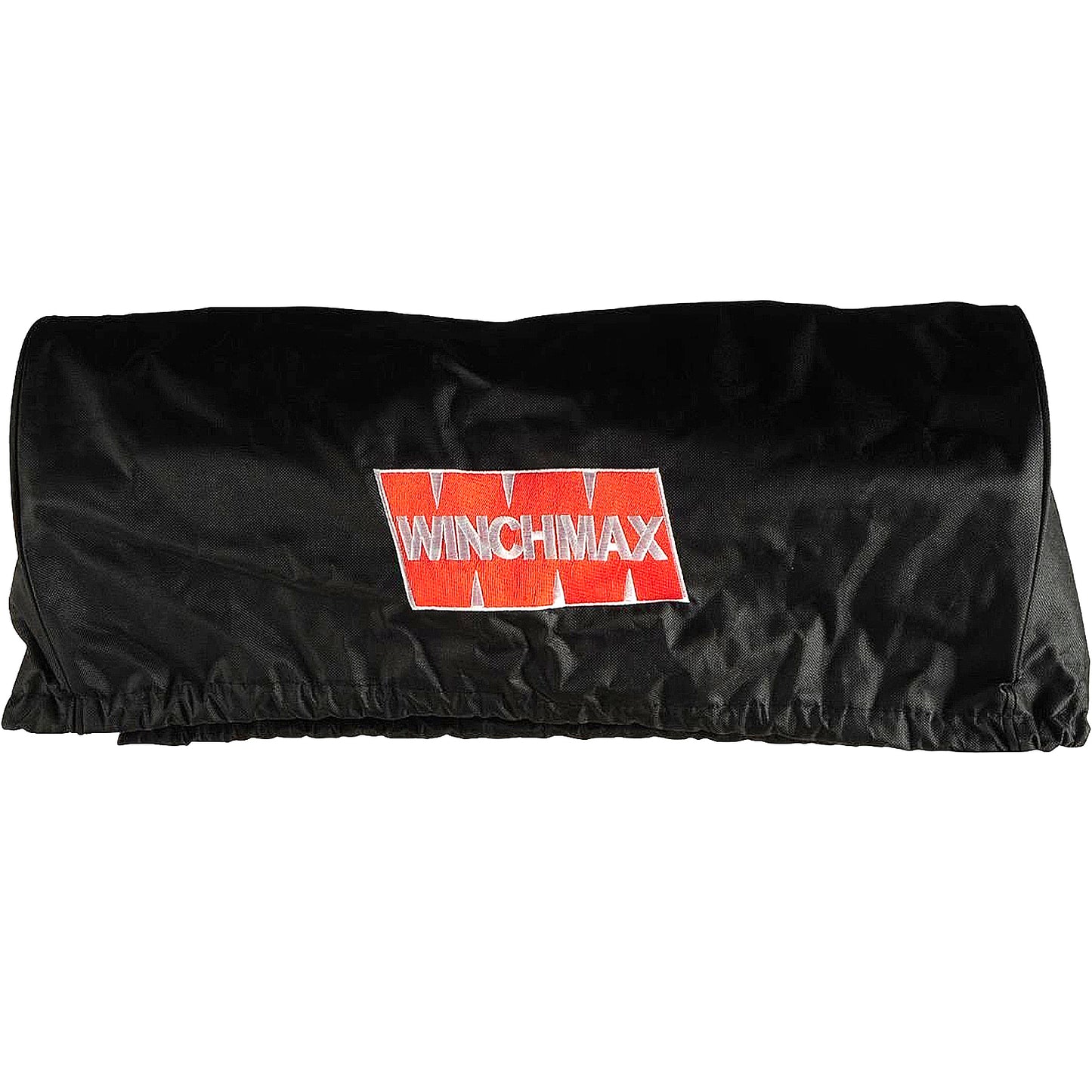

  • Strong WINCHMAX branded cover to protect from water and road grime
  • Heavy duty & built to last - gross weight 85kg.
  • CE certified & built to ISO9001 quality management system requirements.



Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull 20,000lb (9072kg)
Motor 24v 7.0hp/5.2kw, Series Wound
Control Remote switch, 4.5m lead, in & out
Gear Train 4 stage planetary
Gear Reduction Ratio 544:1
Clutch Sliding ring gear
Braking Action Automatic
Drum Size Diameter (3.5") 89mm length (9") 228.6mm
DrumFinish Black, painted.
Cable 25m of 14mm diameter steel wire rope (9/16" 85ft)
Fairlead Heavy-duty 4 way roller fairlead.
Battery Recommended: 750CCA Minimum For Winching
Winch Finish Orange / Black / Stainless Steel
Weight (GW) 85kg (187lb)
Overall Dimensions (LxWxH) 576 x 302 x 305mm
Mounting Bolt Pattern 10.00” x 4.50” (254 x 114.3mm)
No Load Line Speed 5.1m/min (16.73 ft/min)



Layer Rated

 Line pull (Lb)

 Line Pull (Kg)

 Total Rope On Drum (ft/m)

 1

 20000

 9091

15.62/4.76

 2

 15725

 7132

 35.43/10.8

 3

 12956

 5877

 59.55/18.15

 4

 11016

 5336

 85.30/26



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 16.73ft (5.1m)

 82A

 4000 (1814)

 8.20ft (2.5m)

 128A

 8000 (3629)

 7.22ft (2.2m)

 210A

 12000 (5443)

 6.23ft (1.9m)

 278A

 16000 (7257)

 4.92ft (1.5m)

 365A

 20000 (9072)

 3.6ft (1.1m)

 420A
