Product standard wm10000hyd ncsyn dsc 0082 copy white 02

10,000lb (4,536kg) Original Orange Hydraulic Winch, Dyneema Synthetic Rope

WM10000HYD-NCSYN

Availability in stock

£729.95 (Without VAT: £608.29)
€856.66 (EUR) 6,371.23 kr. (DKK) 3,984.15 zł (PLN) 8,770.73 kr (SEK) $1,004.43 (USD) $1,266.31 (CAD) $1,320.28 (AUD) ¥11,128,848 (JPY) $7,808.70 (HKD) $1,436.53 (NZD) $20,603.15 (MXN) 8,562.73 kr (NOK) R14,861.65 (ZAR) CHF948.32 (CHF)

Your delivery cost

(based on country United States) £128.82
Conversions

10,000lb (4,536kg) Original Orange Hydraulic Winch, Dyneema Synthetic Rope

 Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural



Features

  • 10,000lb (4,536kg) straight-line pull hydraulic winch (12v controls)
  • Ultra-tough three-stage gearbox with hardened steel gears.
  • Casing machined from billet steel for maximum impact protection
  • 25m of 12mm genuine Dyneema synthetic rope
  • New ‘through-drum’ rope connection with grub screw clamp for ultra-secure rope attachment to drum.

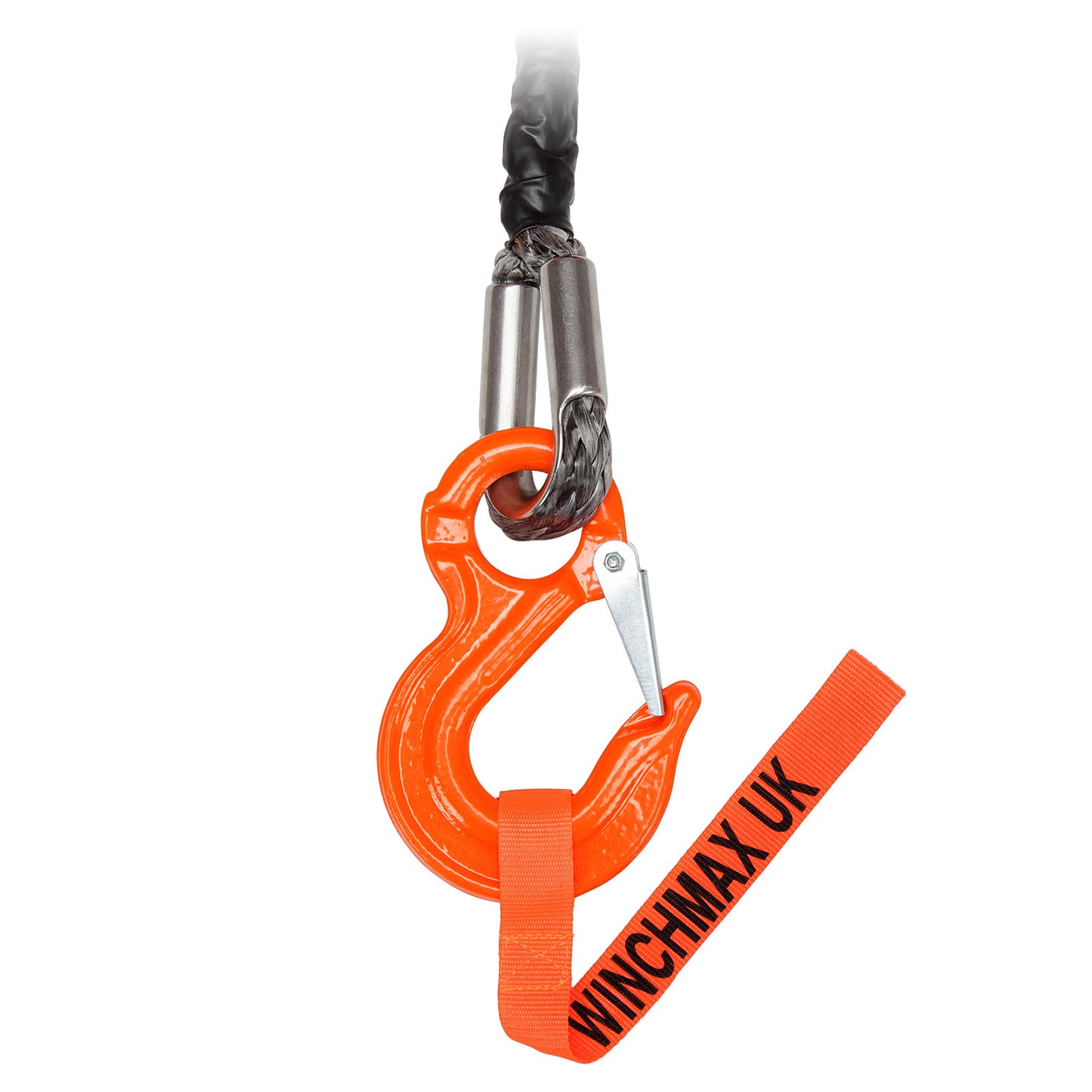

  • Competition hook with safety catch and hand saver, orange.
  • Aluminium hawse fairlead. Precision CNC milled, laser-etched
  • Sliding ring gear free-wheel clutch.
  • High tensile fixing bolt kit.
  • Heavy-duty & built to last - gross weight 55kg.
  • CE certified & built to ISO9001 quality management system requirements.



Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

 Single Line Rated Pull  10,000lb (4,536kg)
 Motor  Hydraulic
 Control  NOT SUPPLIED
 Gear Train  3 Stage Planetary
 Gear Reduction Ratio  32:1
 Clutch  Sliding Ring Gear
 Braking Action  Automatic
 Drum Size  Diameter 88mm Length 222mm
 Drum Finish  Black, painted.
 Cable  25m of 10mm diameter Dyneema SK75
 Hook  Competition hook with safety catch, orange.
 Fairlead  Aluminium hawse fairlead
 Flow  50-60 L/min
 Pressure  10.8Mpa (108 Bar)
 Pressure Hose Connections  18mm/1.5mm
 Winch Finish  Original Orange powder coated
 Weight (GW)  47kg (103lb)
 Overall Dimensions (LxWxH)  548 x 196 x 249mm
 Mounting Bolt Pattern  10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm)
 No Load Line Speed  6.5m/min (21.3 ft/min)



 Layer Rated

 Line pull (lb)

 Pull per layer (kg)

 Line speed m/min

 1

 10000

 4550

4.94

 2

 9150

 4159

5.4

 3

 8440

 3840

5.86

 4

 7280

 3550

6.32
