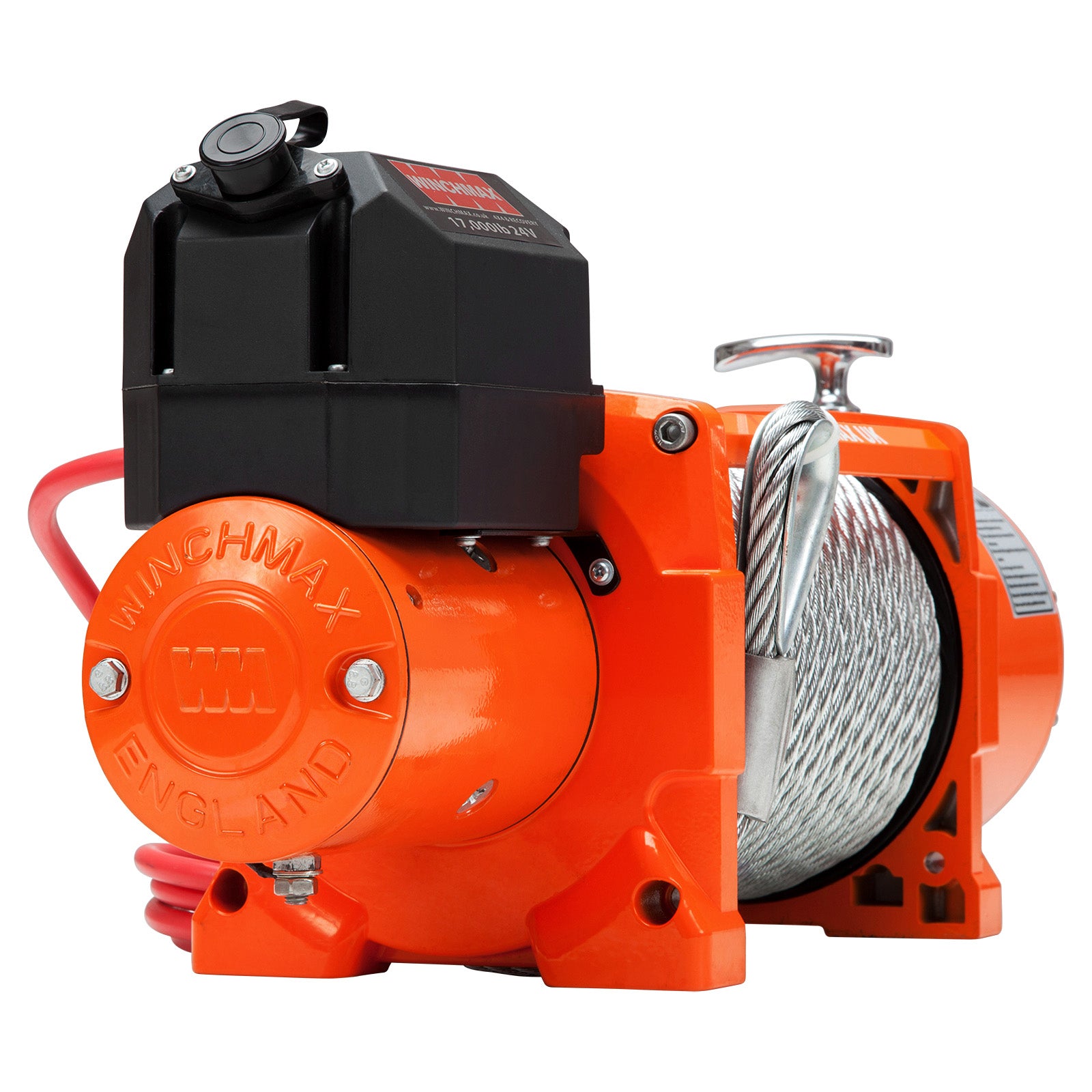

17,500lb (7,938kg) Original Orange 24v Electric Winch, Steel Rope, Wireless Remote Control

WMSL1750024V

Availability in stock

£599.95 (Without VAT: £499.96)
€704.09 (EUR) 5,236.55 kr. (DKK) 3,274.59 zł (PLN) 7,208.71 kr (SEK) $825.55 (USD) $1,040.79 (CAD) $1,085.15 (AUD) ¥9,146,863 (JPY) $6,418.01 (HKD) $1,180.69 (NZD) $16,933.84 (MXN) 7,037.75 kr (NOK) R12,214.87 (ZAR) CHF779.43 (CHF)

Your delivery cost

(based on country United States) £159.25
Conversions

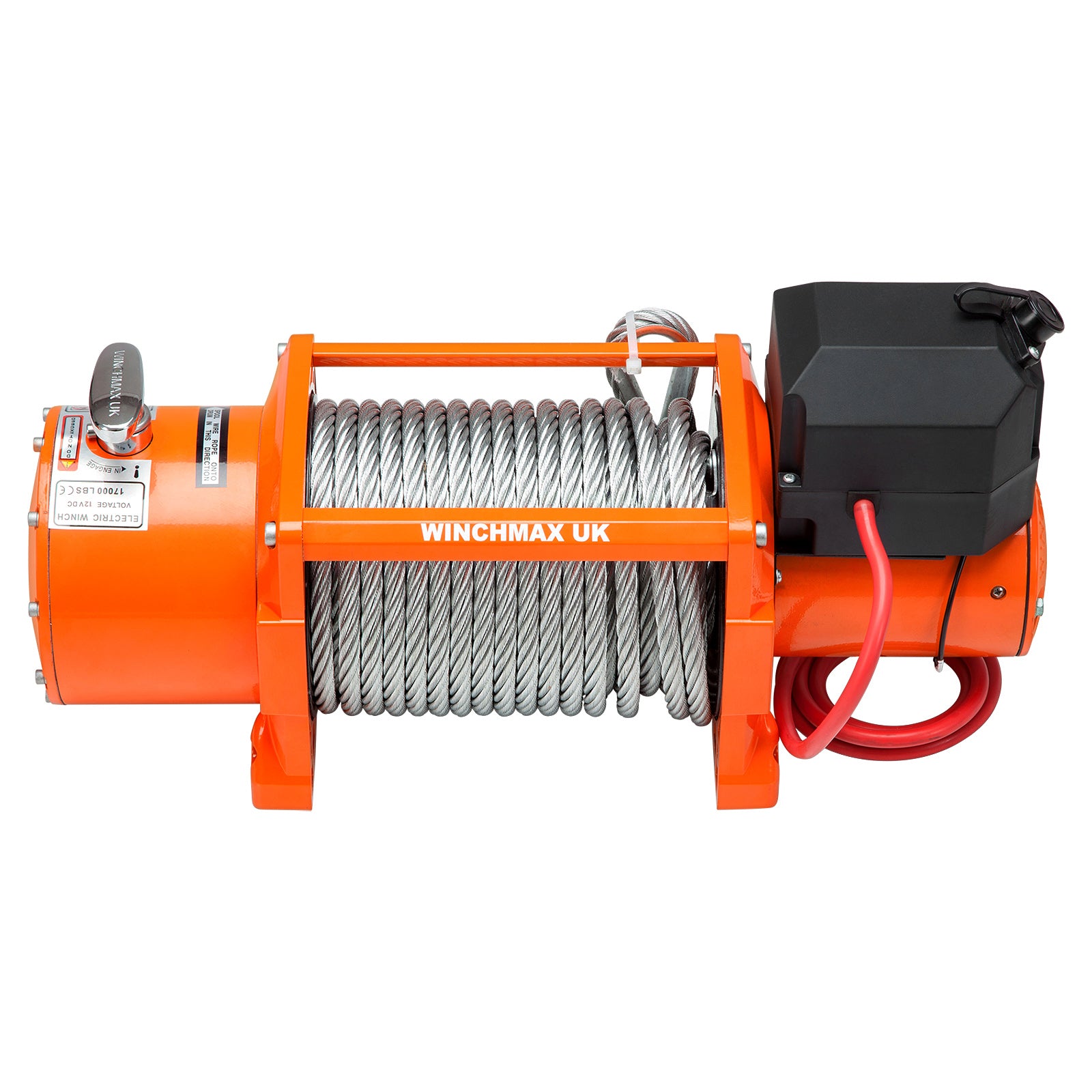

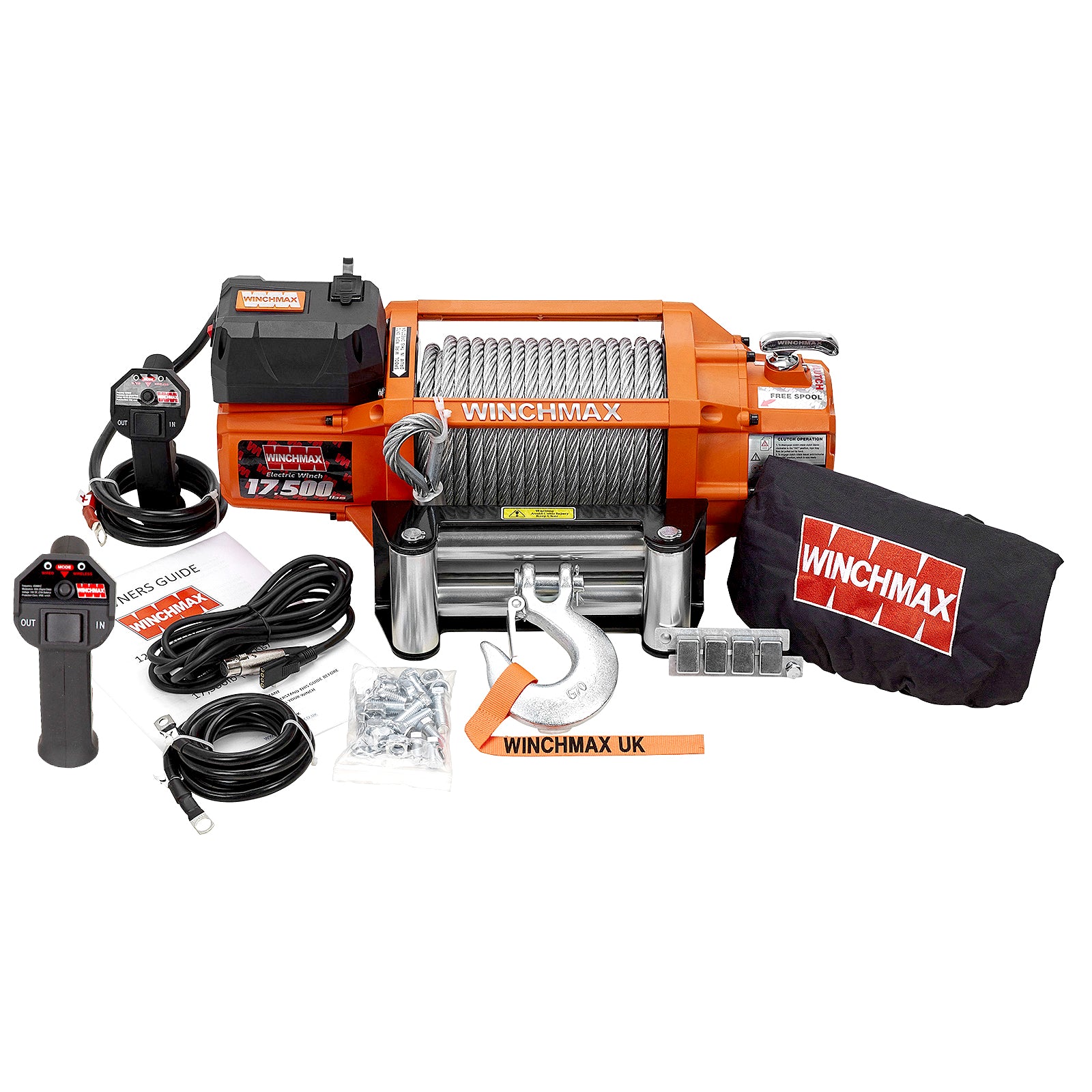

17,500lb (7,938kg) Original Orange 24v Electric Winch, Steel Rope, Wireless Remote Control.

Ideal for recovery trucks and 4x4’s over 3.5T



Features

  • 17,500lb (7,938kg) straight line pull ‘SL series’ 24v electric winch.

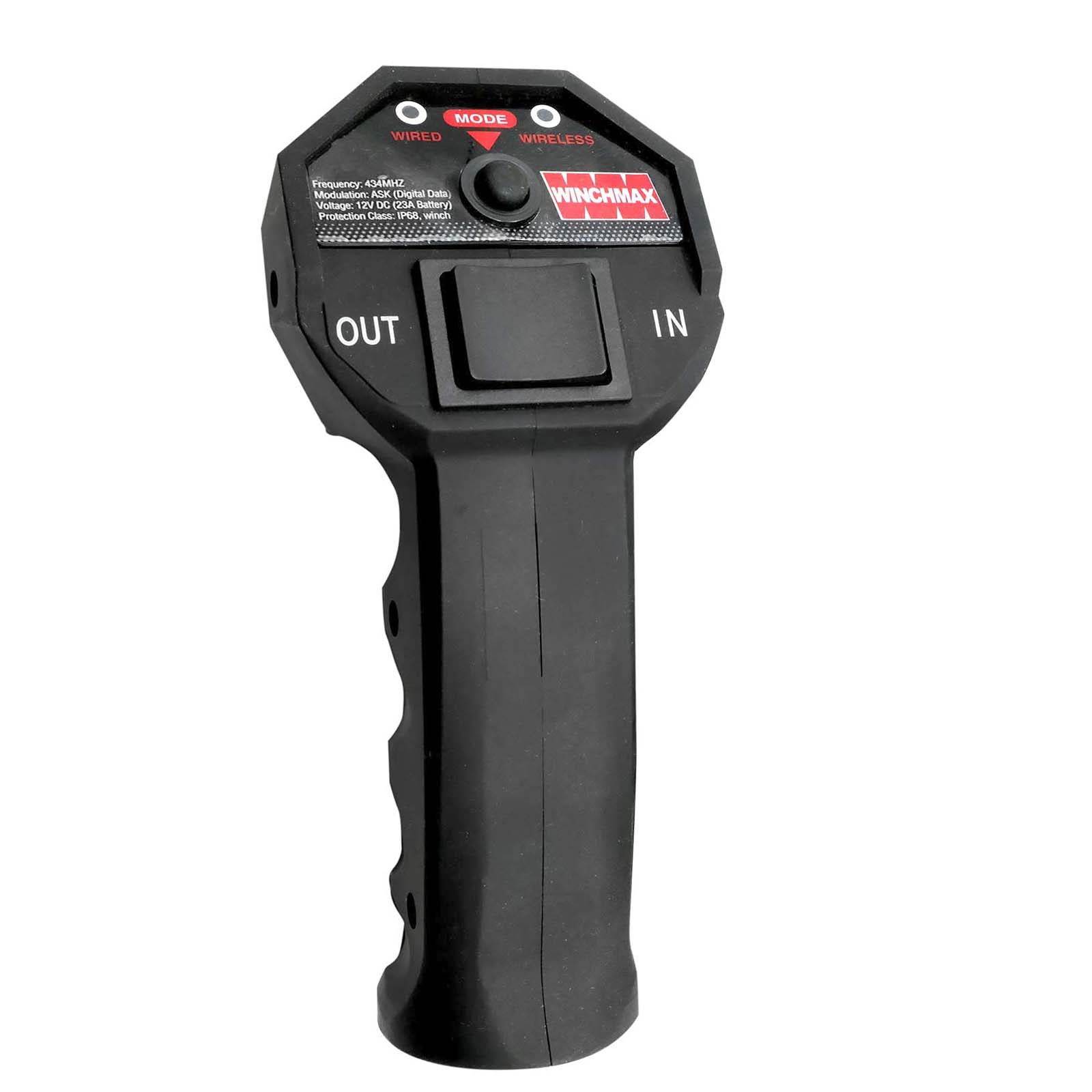

  • Latest technology long-range combination wireless remote control.
  • Super powerful 24v 6.8hp/5.1kw series wound electric motor.
  • Massive ultra-tough three-stage gearbox with hardened steel gears.
  • Motor and gearbox casing machined from billet steel for maximum impact protection.
  • 26m of 12mm multi-strand galvanized steel wire rope.
  • New ‘through-drum’ rope connection with grub screw clamp for ultra-secure rope attachment to drum.

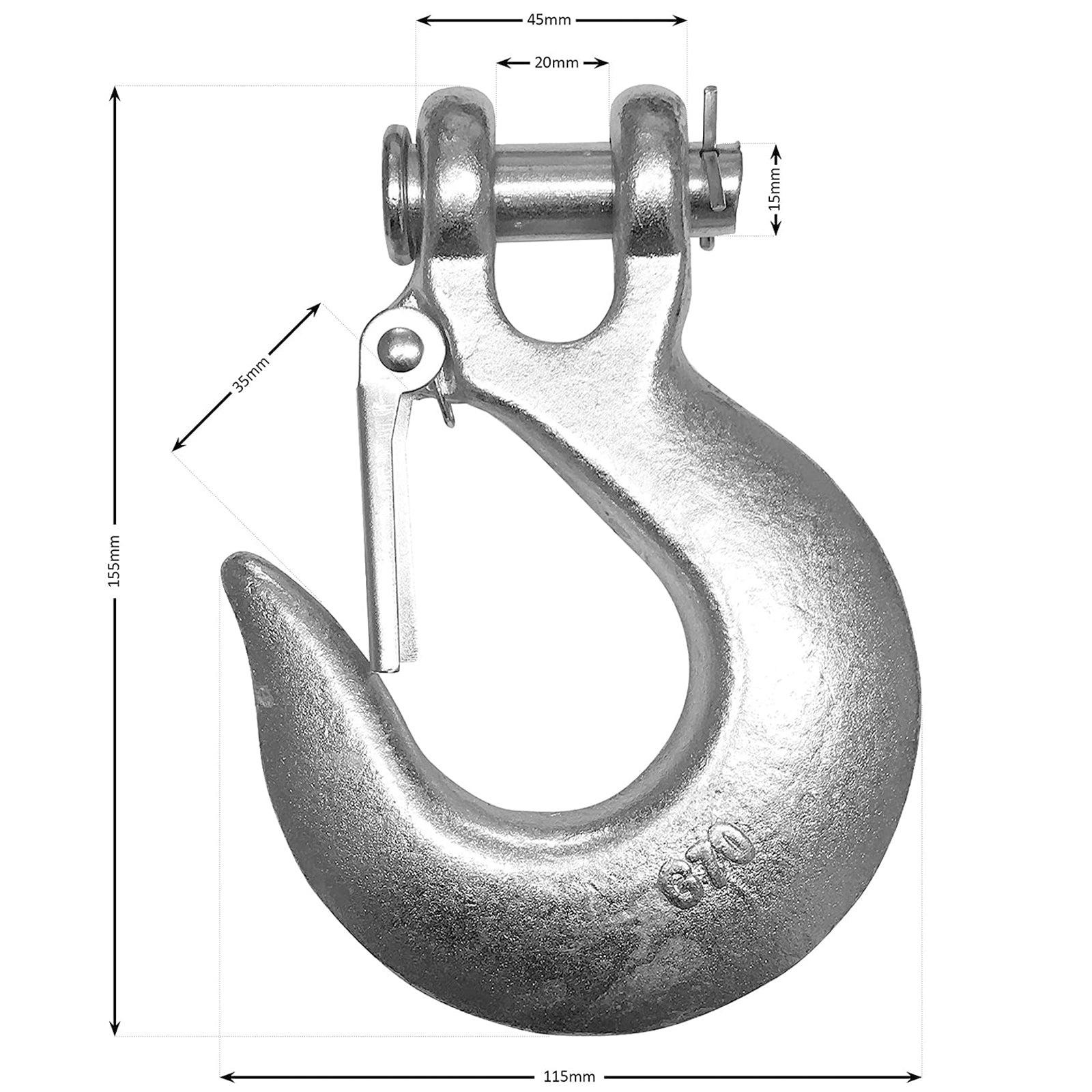

  • Clevis hook ½” G70 grade forged. Safety catch and hand saver. Zinc plated for corrosion resistance.

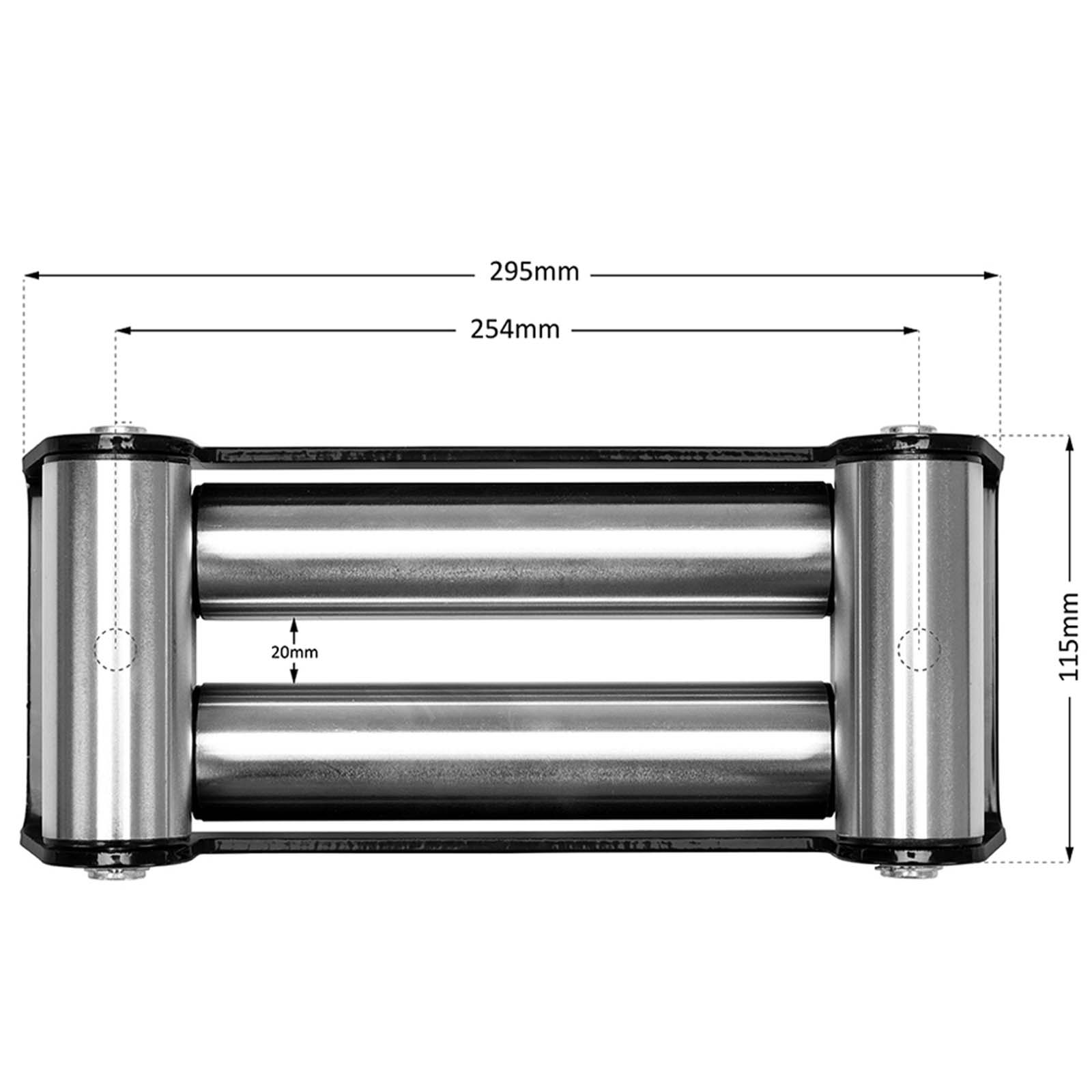

  • Tough four roller fairlead with zinc plated rollers.
  • Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.

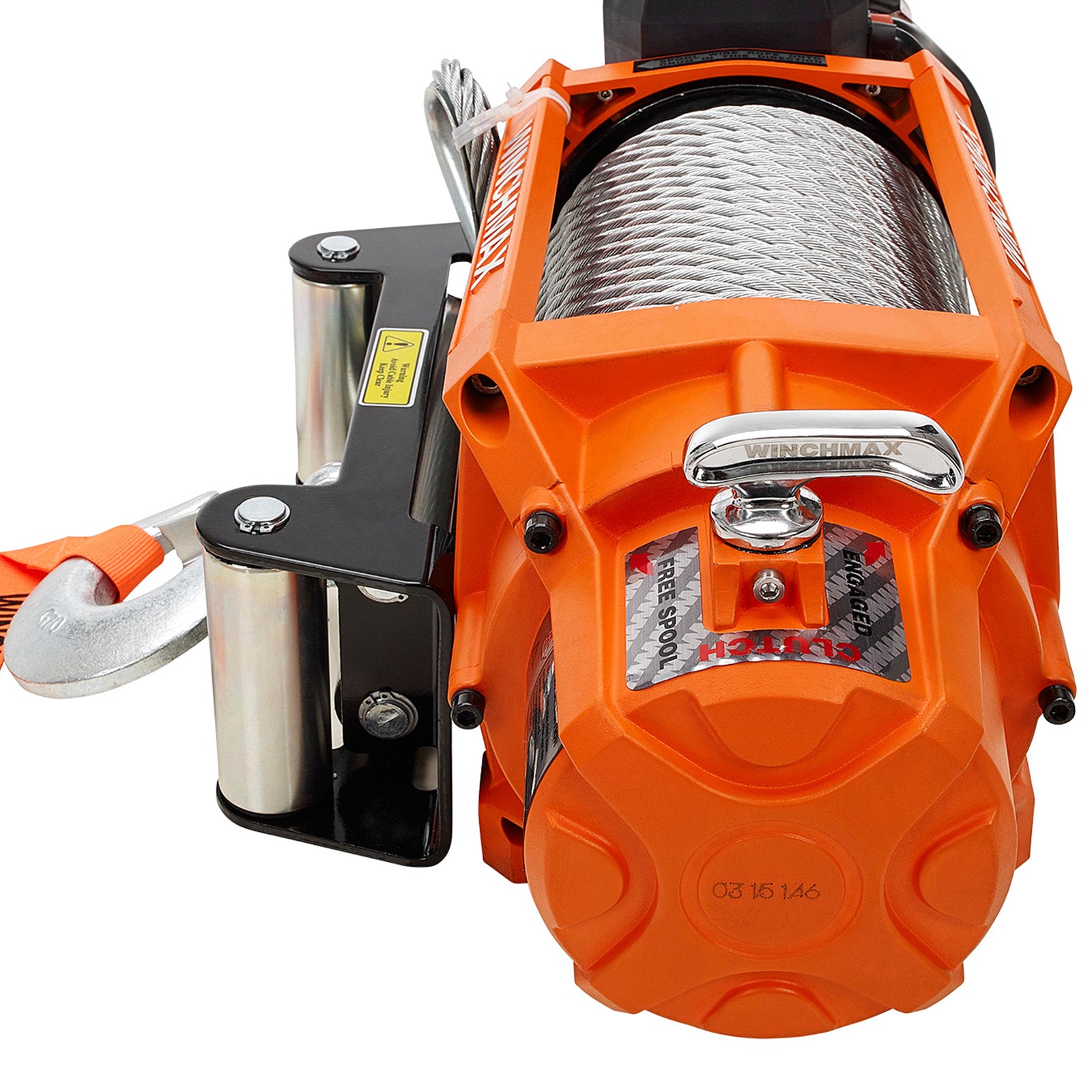

  • Sliding ring gear freewheel clutch.
  • High tensile fixing bolt kit.
  • Strong WINCHMAX branded cover to protect from water and road grime
  • Heavy-duty & built to last - gross weight 60kg.
  • CE certified & built to ISO9001 quality management system requirements.



Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull 17,500lb (7,938kg)
Motor 24v 6.8hp/5.1kw series wound
Control Big grip remote switch, 4.5m lead
Gear train 3 stage planetary
Gear reduction ratio 430:1
Clutch Sliding ring gear
Braking Action Automatic in the drum
Drum size Diameter 88mm (3.45") Length 224 mm(8.82”)
Cable 26m of 12mm diameter steel wire rope
Hook Clevis hook ½”, zinc plated.
Fairlead 4-Way Roller Fairlead
Battery Recommended 750CCA minimum for winching
Battery Leads 2 gauge, 1.83m (72”) 35mmsq - 6.5mm Diameter
Finish Original Orange powder coated
Weight (GW) 60kg (132lb)

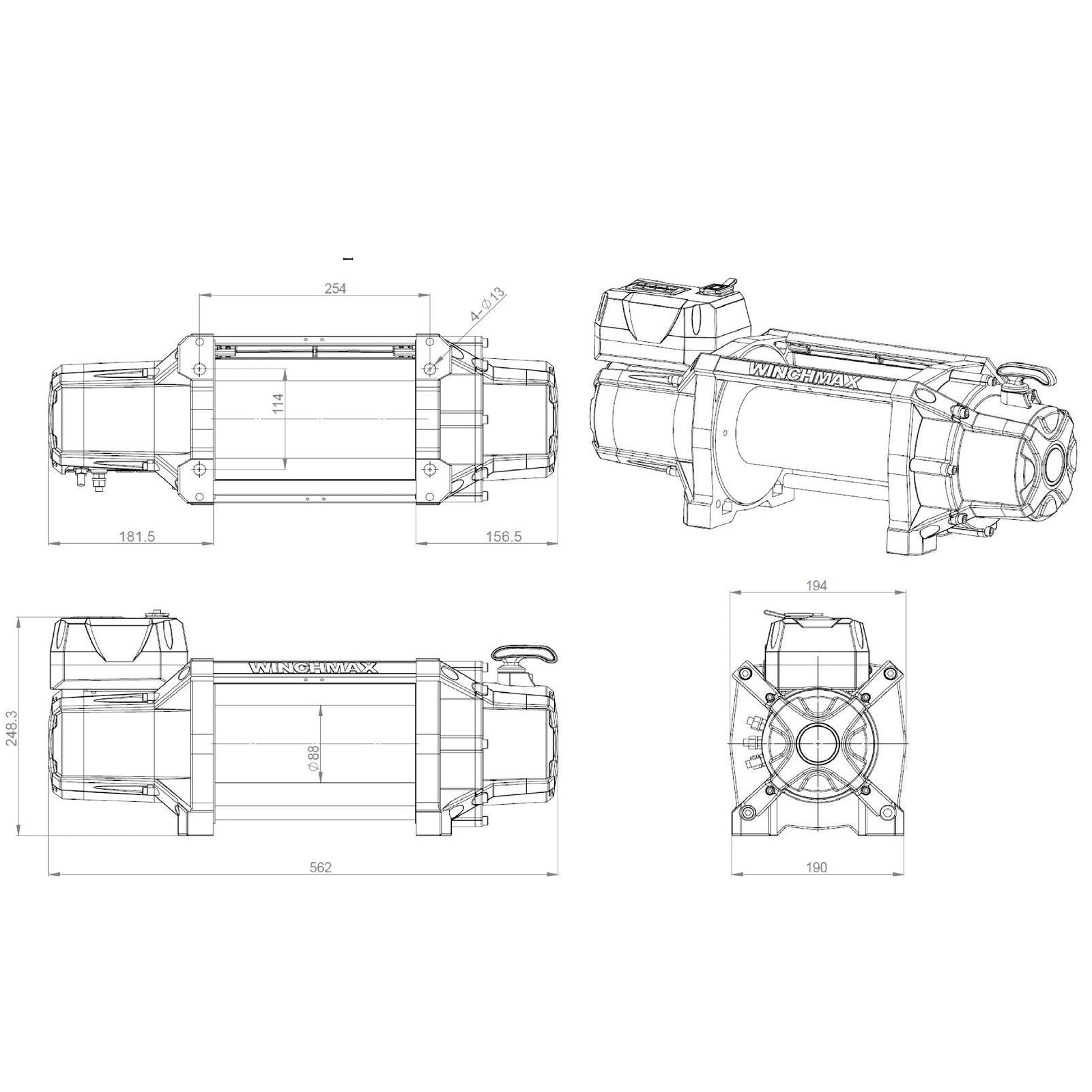

Overall Dimensions (LxWxH) 562 x 194 x 248.3mm (22.1" x 7.6" x 9.8")
Mounting Bolt Pattern 10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm)
Motor Current 65-500A
No Load Line Speed 7.2m/min (23.6 ft/min)
Waterproof IP67 Rating



Layer Rated

 Line pull (Lb)

 Line Pull (Kg)

 Total Rope On Drum (ft/m)

 1

 17500

 7955

 19.68/6

 2

 15225

 6920

 45.92/14.0

 3

 13246

 6021

 75.44/23

 4

 11524

 5238

 85.28/26.0



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 23.62ft (7.2m)

 71A

 6000 (2721)

 9.18ft (2.8m)

 200A

 10000 (4536)

 5.9ft (1.8m)

 300A

 14000 (6363)

 4.26ft (1.3m)

 395A

 17500 (7937)

 2.95ft (1.0m)

 450A
