WINCHMAX CETOP5/NG10 Pressure Regulator

WMHYREG5

Availability in stock

£75.95 (Without VAT: £63.29)
€83.99 (EUR) 625.39 kr. (DKK) 388.23 zł (PLN) 875.36 kr (SEK) $98.30 (USD) $131.51 (CAD) $140.03 (AUD) ¥1,025,405 (JPY) $762.06 (HKD) $148.46 (NZD) $2,099.93 (MXN) 936.42 kr (NOK) R1,615.27 (ZAR) CHF89.73 (CHF)

Your delivery cost

(based on country United States) £15.91
Conversions

Modular Hydraulic Pressure Regulator Relief Valve CETOP5/NG10


Modular relief valve used to regulate the maximum pressure within the operating parameters of the winch or other item being controlled. Installed between the manifold block and directional control valve. When set pressure is exceeded P will bypass across to T.

Features.

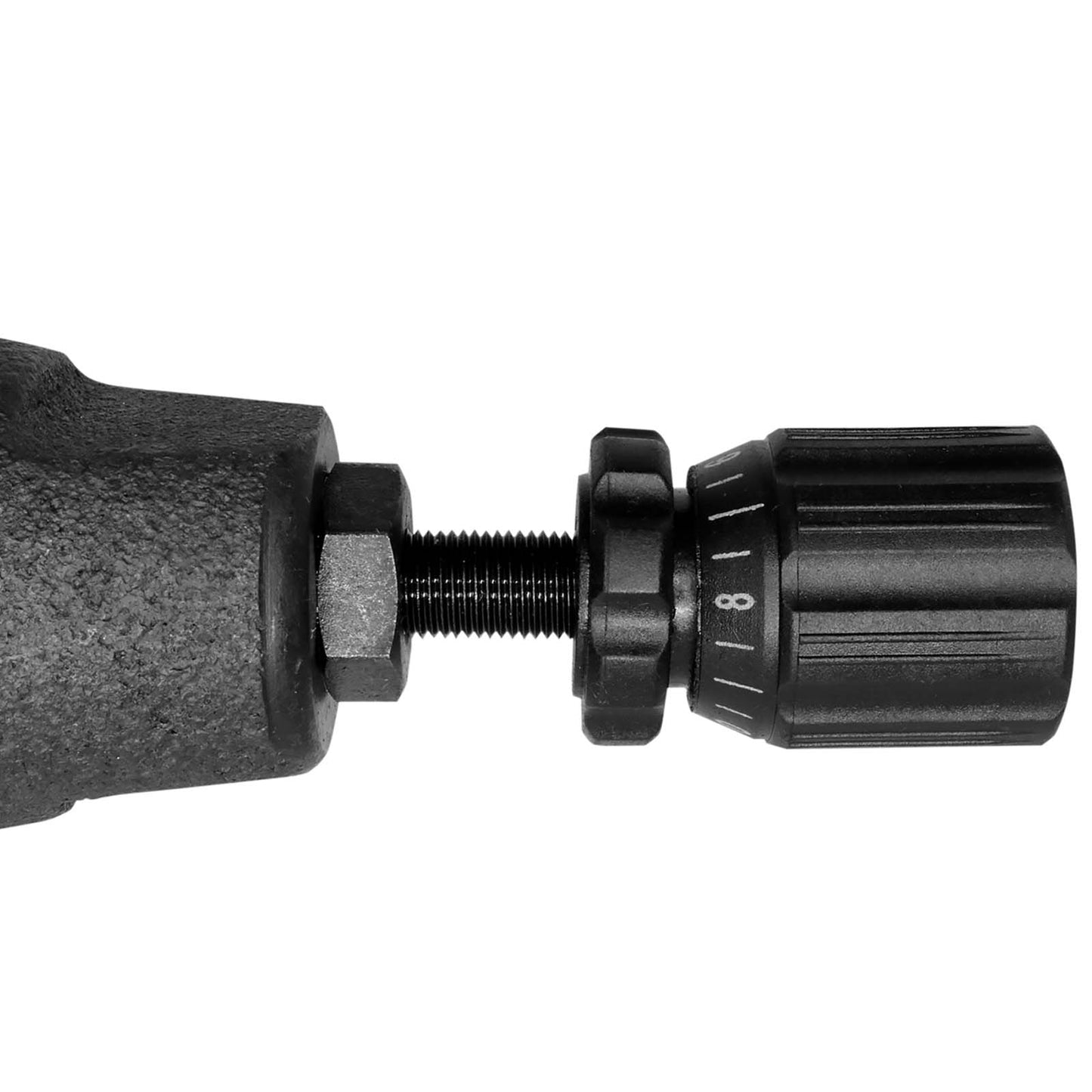

  • Easy to operate rotary calibration control with lock ring.
  • P to T on operation.
  • 70-250 bar setting range.

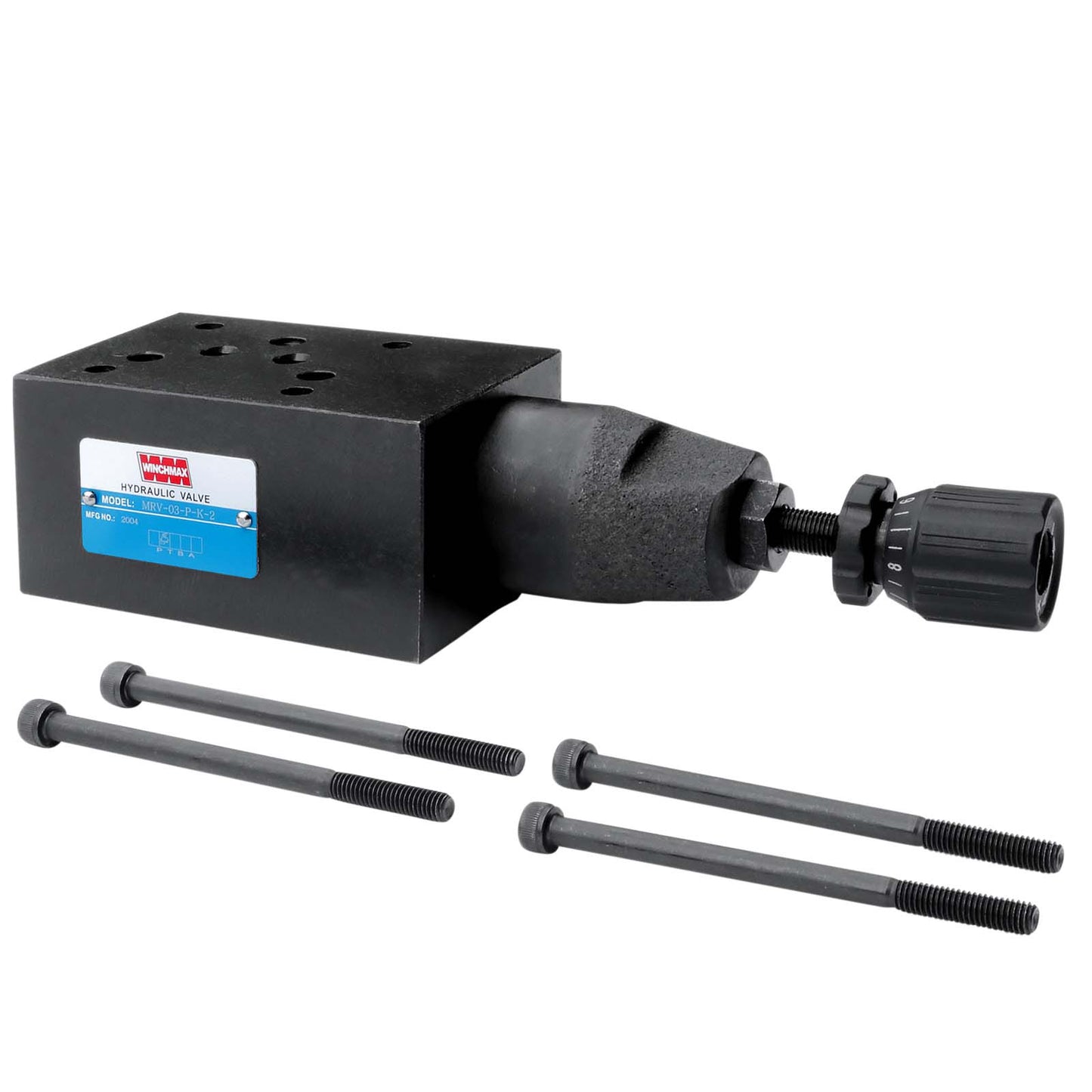

  • Supplied with extended bolts for attachment between direction valve and manifold block

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Modular Hydraulic Pressure Regulator Relief Valve

Max. flow rate (1/min)

70

A, B, P Weight (kg)

3.4

W Weight (kg)

4.5

Hydraulic fluid

Mineral oil

Seal material

NBR seals

Temperature range (°C)

-30 to  +80

Viscosity range (mm2/s)

2.8 to 500

Oil cleanliness class according to 1504406

Class 20/18/15
