9,000lb (4,082kg) Original Orange 12v Electric Winch, Steel Rope, EN14492 Compliant, Twin Wireless Remote Control.

WM9000ENWR12V

Availability in stock

£399.95 (Without VAT: £333.29)
€443.80 (EUR) 3,307.00 kr. (DKK) 1,983.20 zł (PLN) 4,647.22 kr (SEK) $498.12 (USD) $676.04 (CAD) $717.84 (AUD) ¥5,355,744 (JPY) $3,860.46 (HKD) $763.51 (NZD) $11,230.24 (MXN) 4,738.64 kr (NOK) R8,510.30 (ZAR) CHF471.45 (CHF)

Your delivery cost

(based on country United States) £94.36
Conversions

9,000lb (4,082kg) Original Orange 12v Electric Winch, Steel Rope, EN14492 Compliant, Twin Wireless Remote Control.
Electronic load limiter & emergency stop pendant controller.

Fully EN14492 compliantapproved for professional use on recovery trucks & trailers up to 3.5T



Features

  • 9,000lb (4,082kg) straight-line pull, 12v electric winch.
  • Fully EN14492 compliant winch for commercial recovery use.
  • Built-in electronic load limiter.
  • Latest technology long-range wireless remote controls, twin handsets
  • Super powerful 12v 6.8hp/5.1kw series wound electric motor.
  • Massive ultra-tough three-stage gearbox with hardened steel gears.
  • Motor and gearbox casing machined from billet steel for maximum impact protection.
  • 24m of 9mm multi-strand steel wire rope.
  • Through-drum rope attachment with grub screw clamp for maximum security.

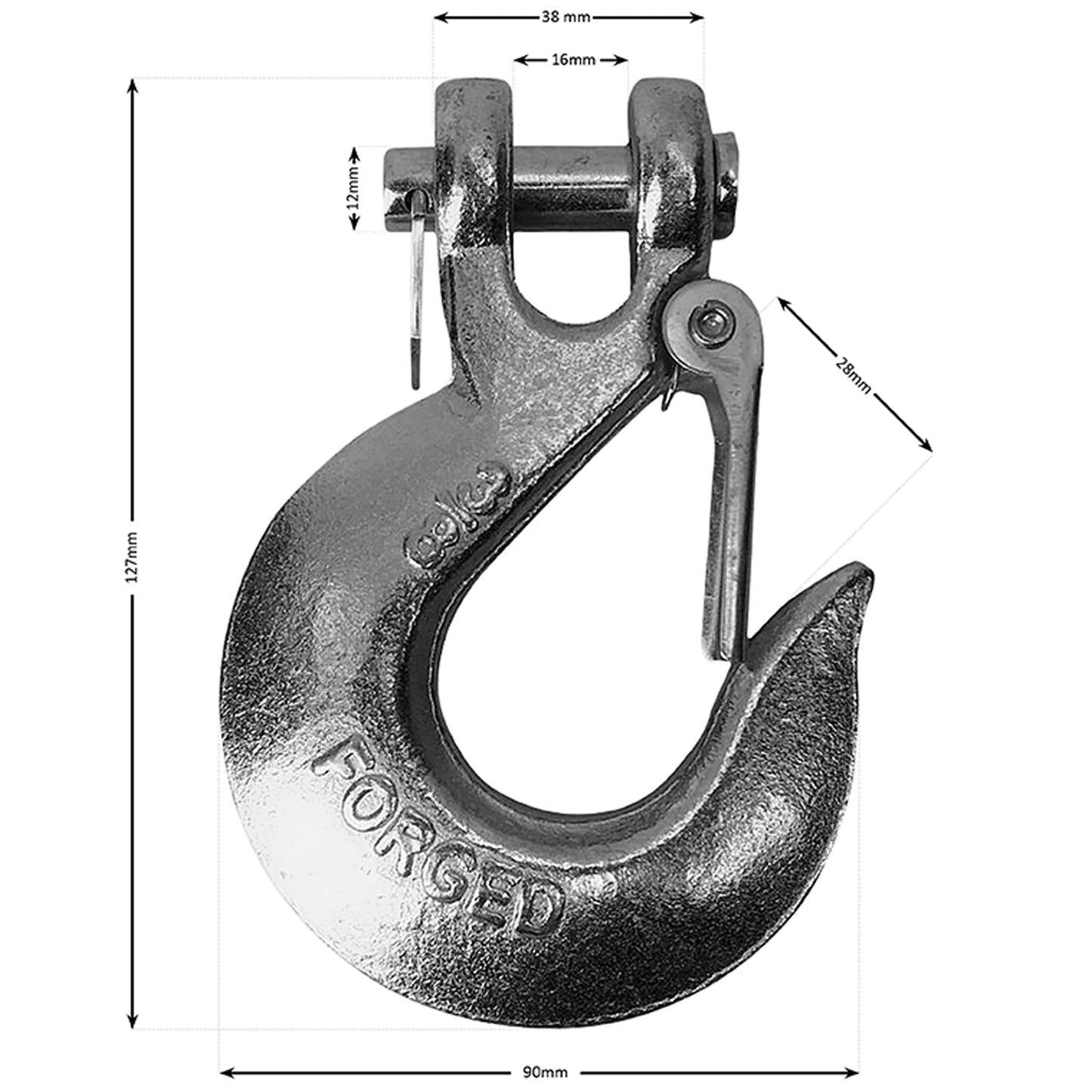

  • Clevis hook ⅜” G70 grade forged. Safety catch and hand saver. Zinc plated for corrosion resistance.
  • Tough four roller fairlead with zinc plated rollers.
  • Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP68 waterproof.
  • Power in/out handheld control unit - with a large emergency stop button
  • Sliding ring gear freewheel clutch.
  • Tough four roller fairlead with zinc plated rollers.
  • High tensile fixing bolt kit.
  • Strong WINCHMAX branded cover to protect from water and road grime.
  • Heavy-duty & built to last - gross weight 52kg.
  • CE certified & built to ISO9001 quality management system requirements.



Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single line rated pull 9,000lb (4,082kg)
Voltage 12V DC
Motor 6.6HP/4.5kw series wound
Control Remote switch, 12ft (3.7m) lead, in & out
Gear train 3 stage planetary
Gear reduction ratio 358:1
Clutch Sliding ring gear
Braking Action Automatic in the drum
Drum size Diameter (3.5") 90mm Length (8.82") 224mm
Cable 24m of 9.5mm diameter steel wire rope
Fairlead 4-way roller fairlead
Remote Control 2 x Long Range Remote Controls Included
Battery Recommended: 650CCA Minimum For Winching
Finish Orange
Weight GW 52kg (114lb)
Overall Dimensions(LxWxH) 560.5 x 195 x 232mm
Mounting Bolt Pattern 254 x 114.3mm + 254mm x 176mm (8 fixings)
No Load Line Speed 7.28m/min (23.9 ft/min)



Performance Data

Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 21.5ft (6.5m)

 65A

 2,000 (909)

 11.5ft (3.55m)

 126A

 4,000 (1,818)

 9.4ft (2.85m)

 175A

 6,000 (2,727)

 7.9ft (2.4m)

 230A

 8,000 (3,636)

 6.5ft (2.0m)

 280A

 9,000 (4,090)

 5.22 (1.5)

 360A



Line pull and rope capacity in layer

Layer Rated

 Line pull (Lb)

 Line Pull (Kg)

 Total Rope On Drum (ft/m)

 1

 9,000

 4,090

19.6/6.0

 2

 8,000

 3,636

 42.6/13.0

 3

 6,670

 3,030

 68.9/21.0
