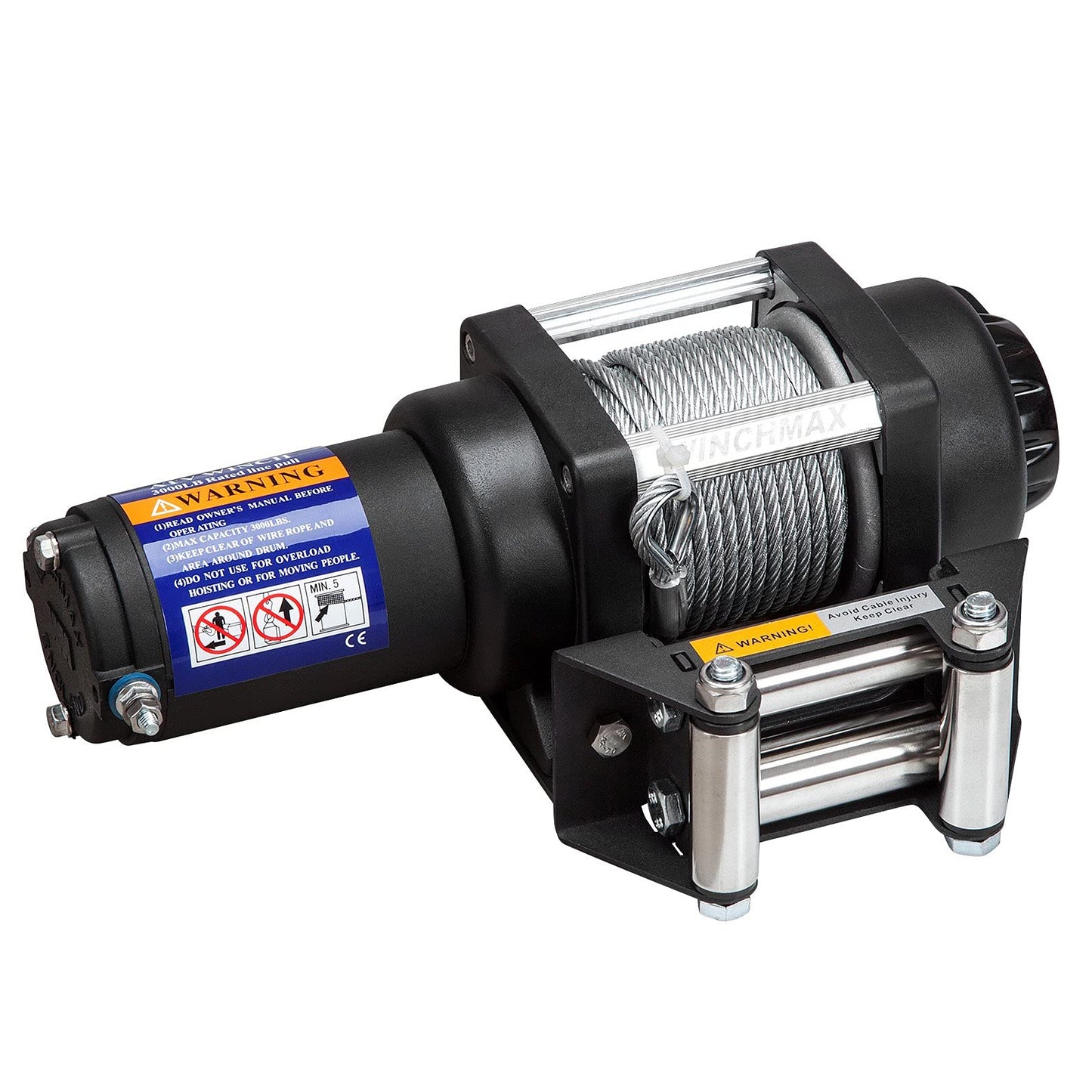

ELECTRIC WINCH 12V ATV BOAT TRAILER 3000 lb MIL SPEC WINCHMAX STAINLESS STEEL MARINE WIRELESS REMOTE

WM300012VSSMILSPEC

Availability in stock

£179.95 (Without VAT: £149.96)
  • 3,000lb (1361 KG) straight straight line pull.
  • 15.5m of 5mm stainless steel wire rope.
  • Latest technology long range wireless remote x 2.
  • Super powerful 12v permanent magnetic electric motor.
  • Heavy duty one piece solenoids.
  • Power In / Out rocker switch (with handlebar mount).
  • Ultra Tough THREE stage gearbox with hardened steel gears.
  • All alloy body.
  • Free-wheel clutch.
  • Four roller stainless steel fairlead.
  • Stainless steel cross bars and fixings.
  • Upgraded water seals.
  • High tensile fixing bolt kit.
  • 2x 180cm Battery power cables, 2x 90cm Motor power cables

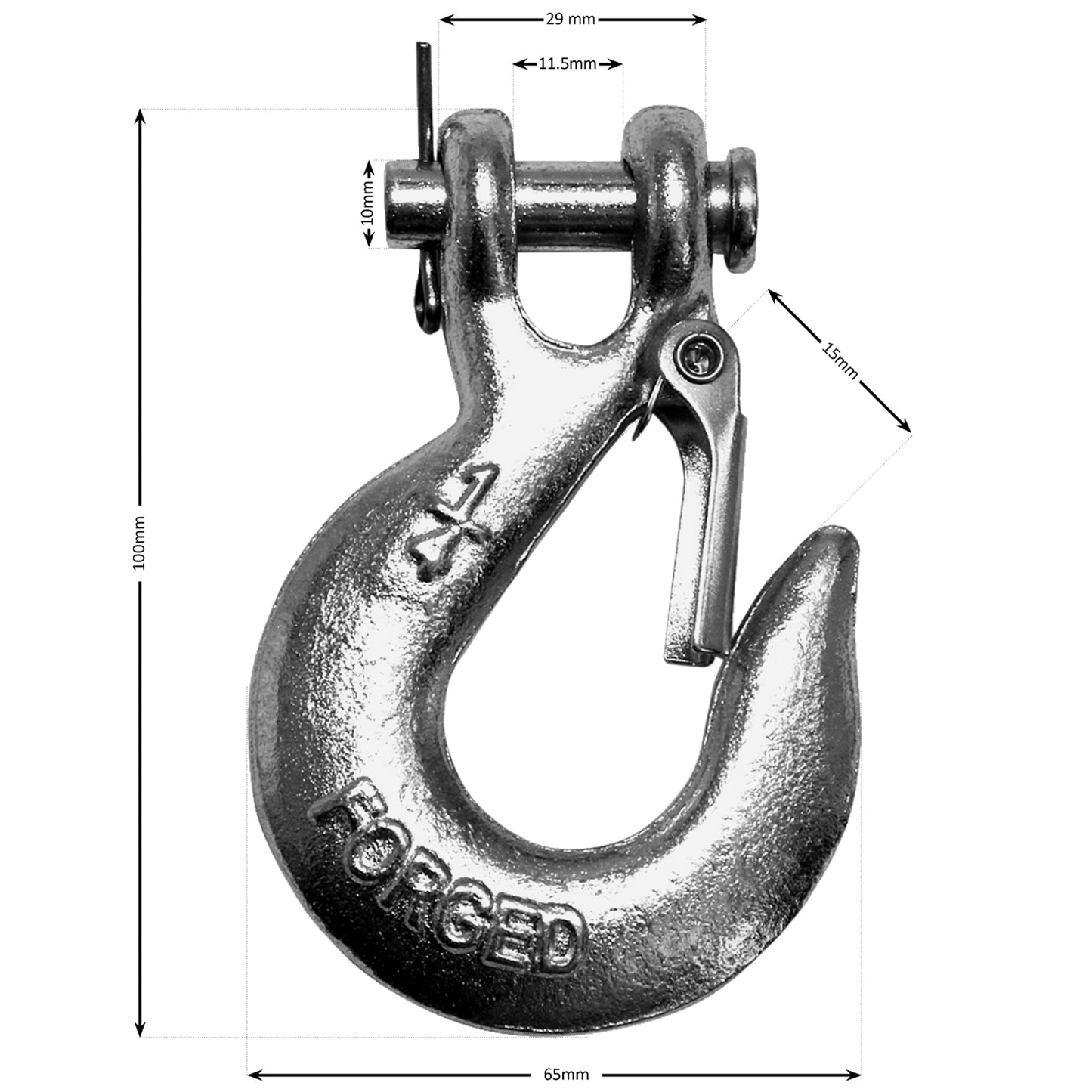

  • Clevis hook with safety catch and hand saver.
  • Heavy duty & built to last - gross weight 12KG.
  • CE Certified & Built to ISO9001 Quality Management System Requirements.



Single line rated pull 3,000lb (1361 KG)
Motor 12v 1.5hp permanent magnetic motor
Control Remote Rocker Switch, Handlebar Mount Kit, In and Out
Gear train 3 Stage Planetary
Gear reduction ratio 136:1

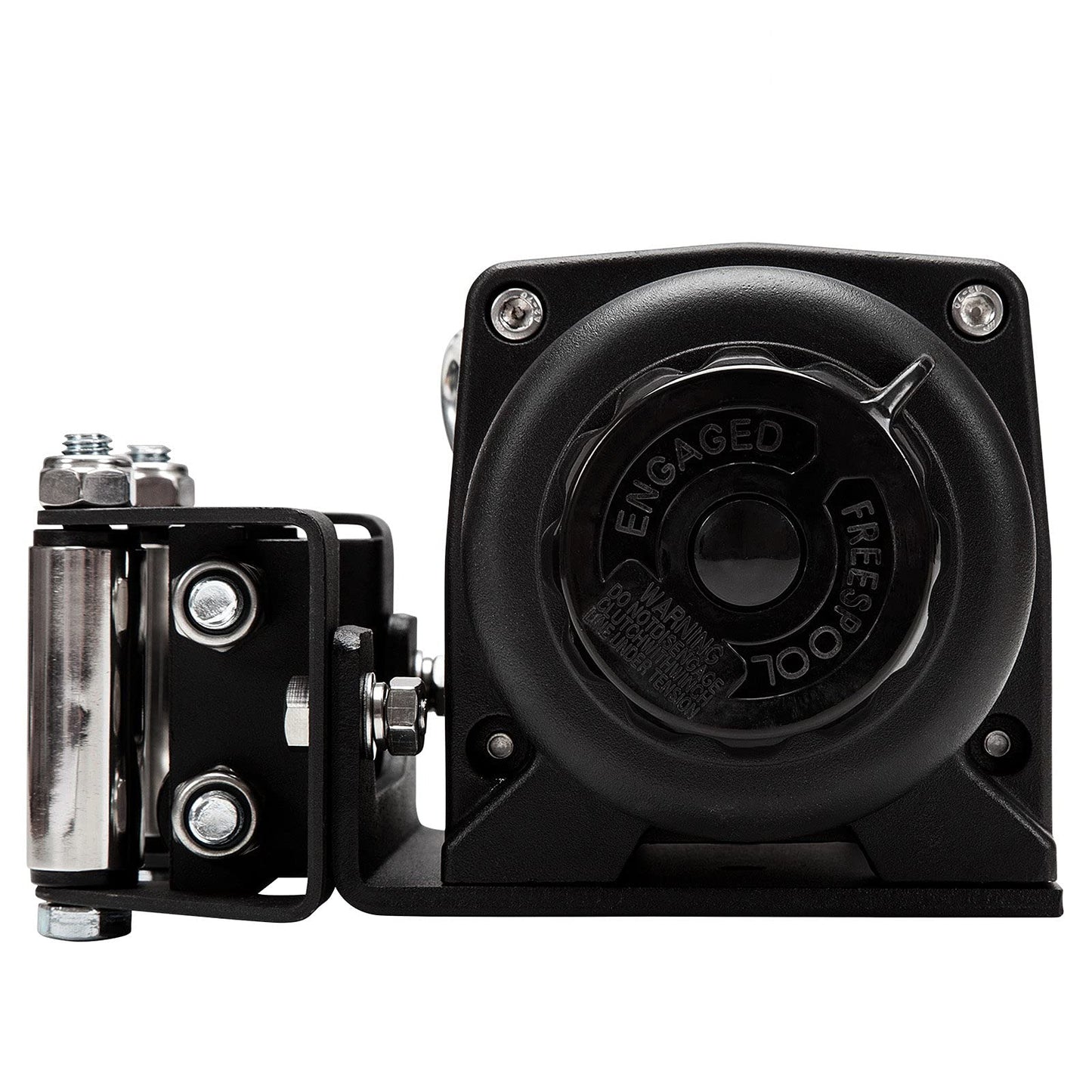

Clutch Cam Activated Free Spool
Braking Action Automatic In The Drum
Drum size Diameter 50mm (2.00") Length 75mm(2.9”)
Cable 15.5m (50ft) of 5mm Stainless Steel wire rope
Fairlead 4 Way Stainless Steel Roller fairlead
Battery Recommended 12Ah minimum for winching
Battery Leads 6 gauge, 1.7m (67”) 15mmsq - 4.2mm Diameter
Finish Matt Black Textured (Low Light)
Weight GW 12KG (26.5lb)

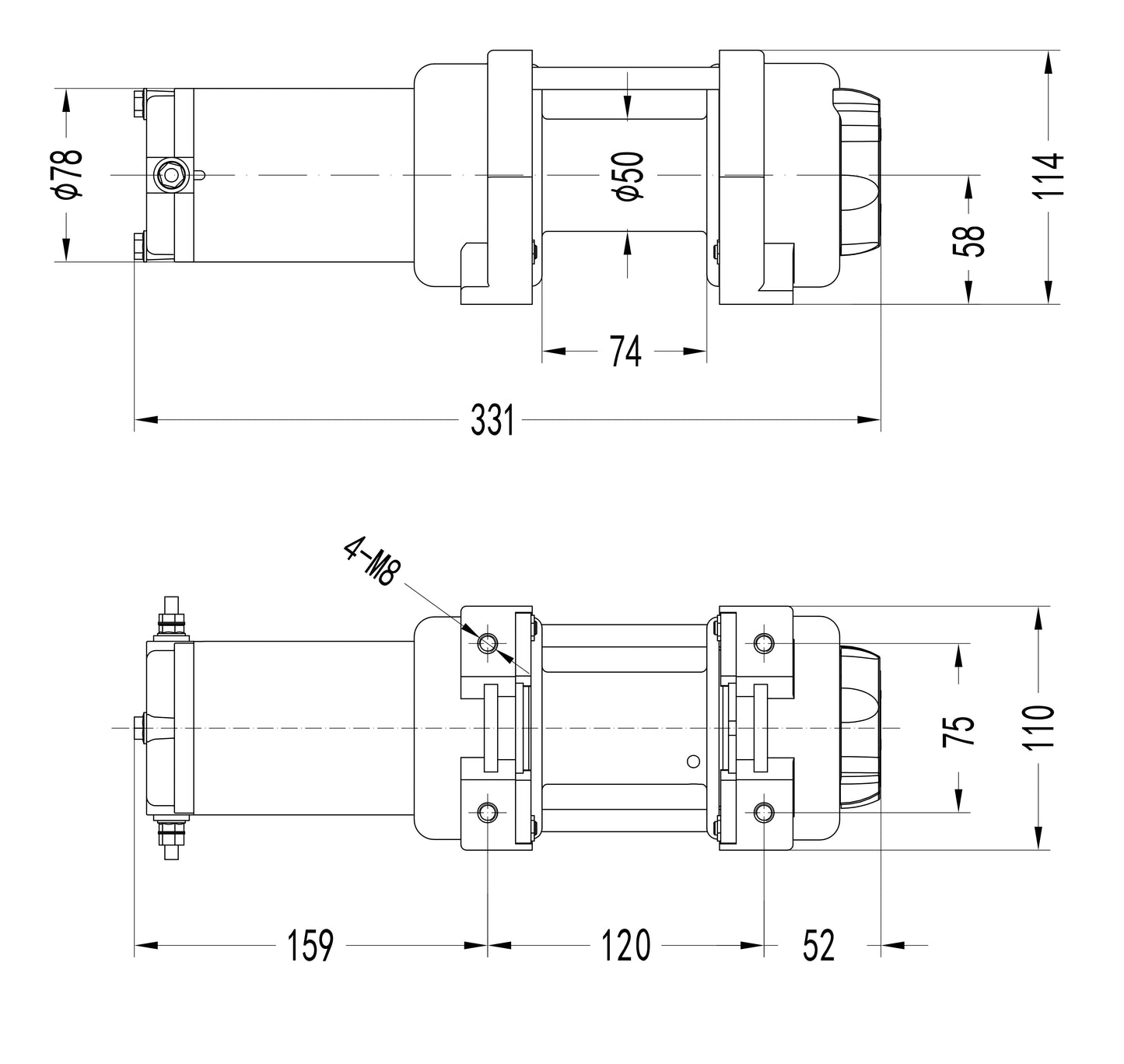

Overall Dimensions(LxWxH) 339 x 110 x 114 mm
Mounting Bolt Pattern 120 x 76 mm
Motor Current 15-200A
No Load Line Speed 8.3m/min (27.2 ft/min)

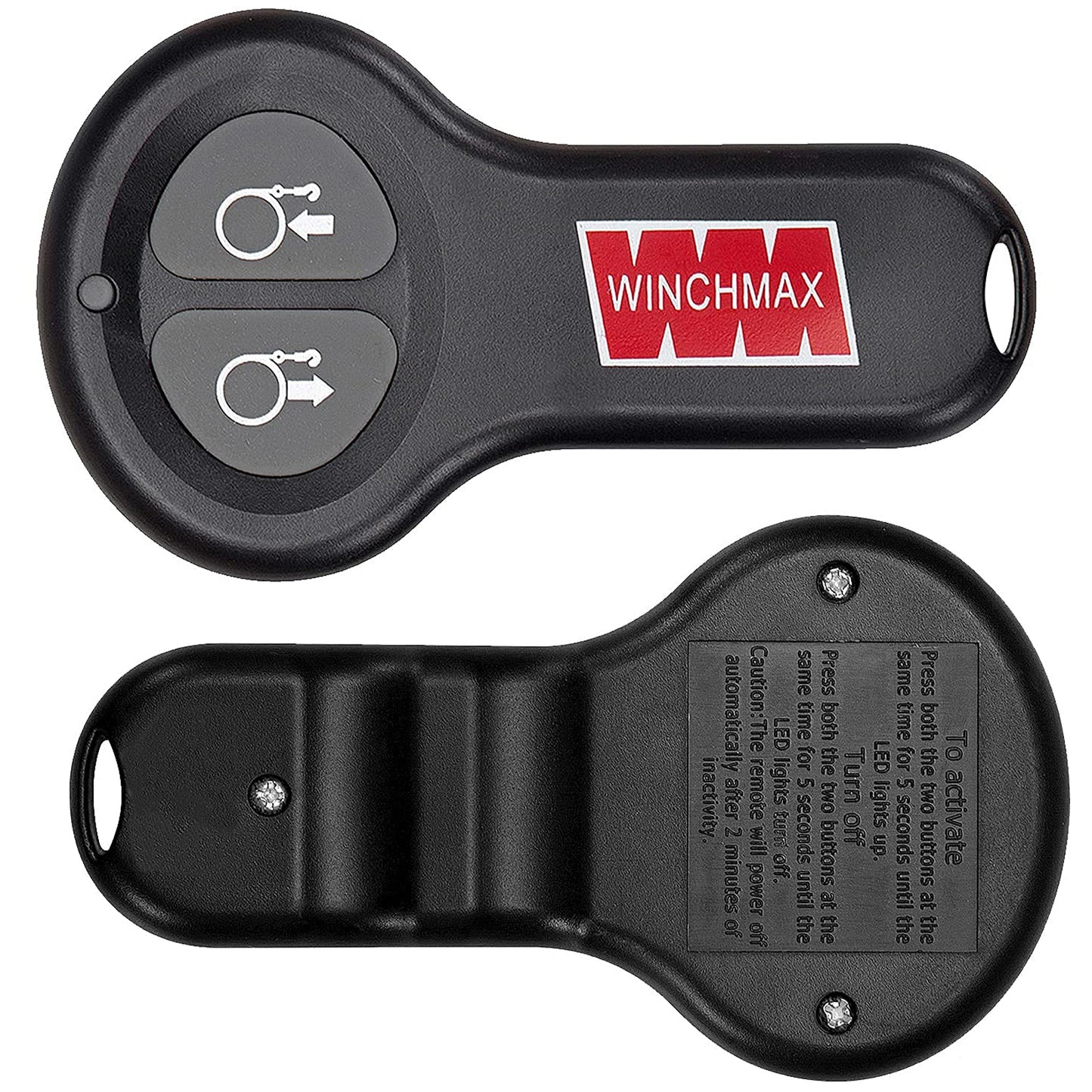

Wireless Remote Long Range Wireless Remote Control x 2



Layer Rated

 Line pull (Lbs)

 Line Pull (Kgs)

 Total Rope On Drum (ft/m)

 1

 3000

 1361

 8.85/2.7

 2

 2561

 1162

 19.22/5.86

 3

 2234

 1013

 31.11/9.48

4

 1981

 899

 44.52 (13.58)

5

 1779

 807

 50.0 (15.5)



Line Pull (lbs/kgs)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 27ft (8.3m)

 15A

 500 (227)

 20ft (6.1m)

 40A

 1000 (454)

 16ft (4.9m)

 60A

 2000 (907)

 9ft (2.7m)

 130A

 3000 (1361)

 5ft (1.5m)

 190A
